Perkins 1204F-E44TA - Product Identification Information

1204F - DEF System Supplement

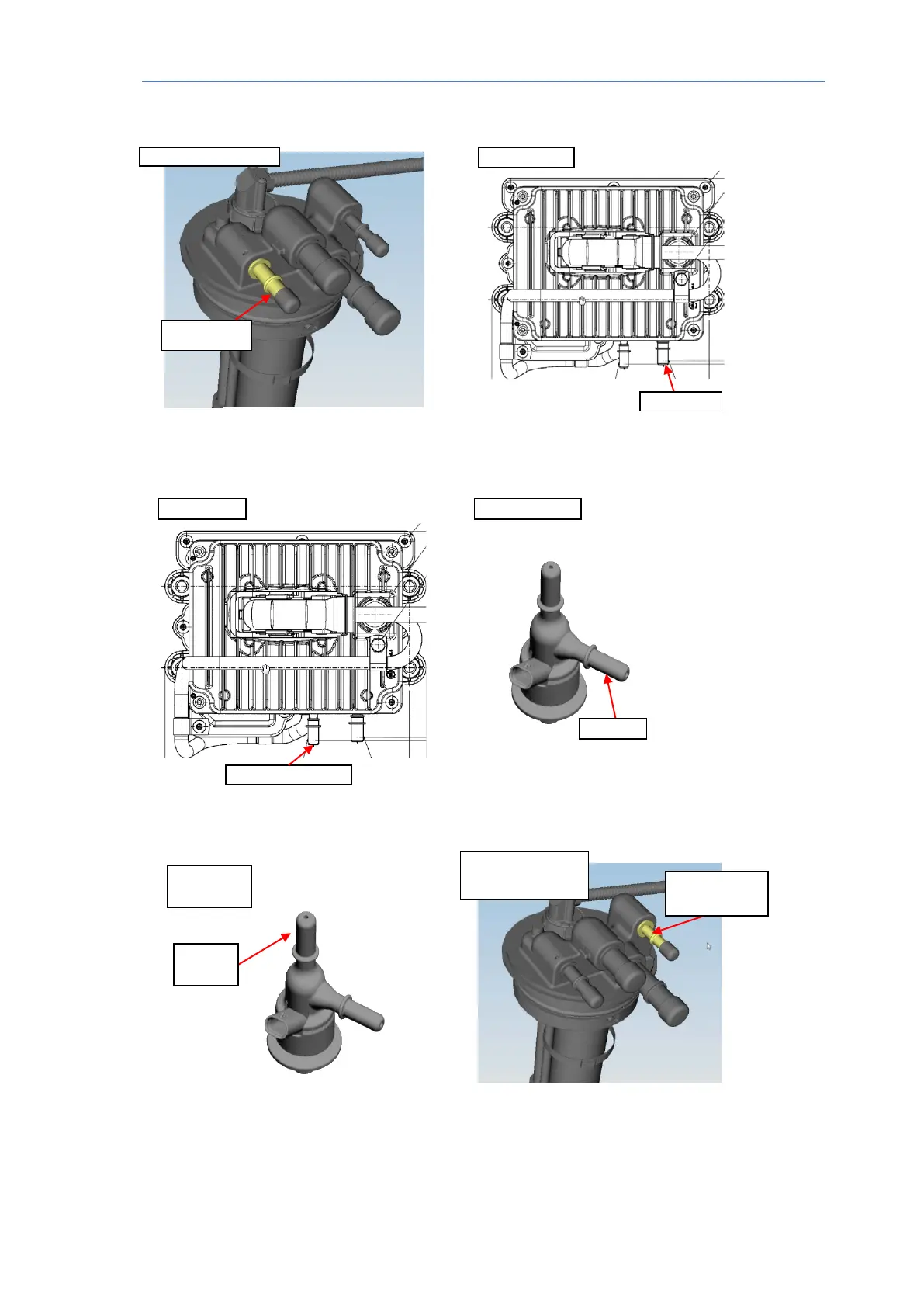

DEF supply - DEF suction line from the tank header to the PEU
DEF supply - PEU to injector
DEF return - DEF Injector to Tank Header
DEF
Outlet/suction
I - DEF Tank Header
J - PEU
Fig 5.3
DEF Inlet
K - PEU
L - DEF Injector
DEF inlet
DEF Outlet/pressure
Fig 5.4
M - DEF
Injector
DEF
outlet
DEF
inlet/return
N - DEF Tank
Header
Fig 5.5
A&I manual Publication TPD 1832 – Production issue 3. Page 32 of 41
