INSTRUMENT PANEL
24 4006/8 Diesel, May 1998

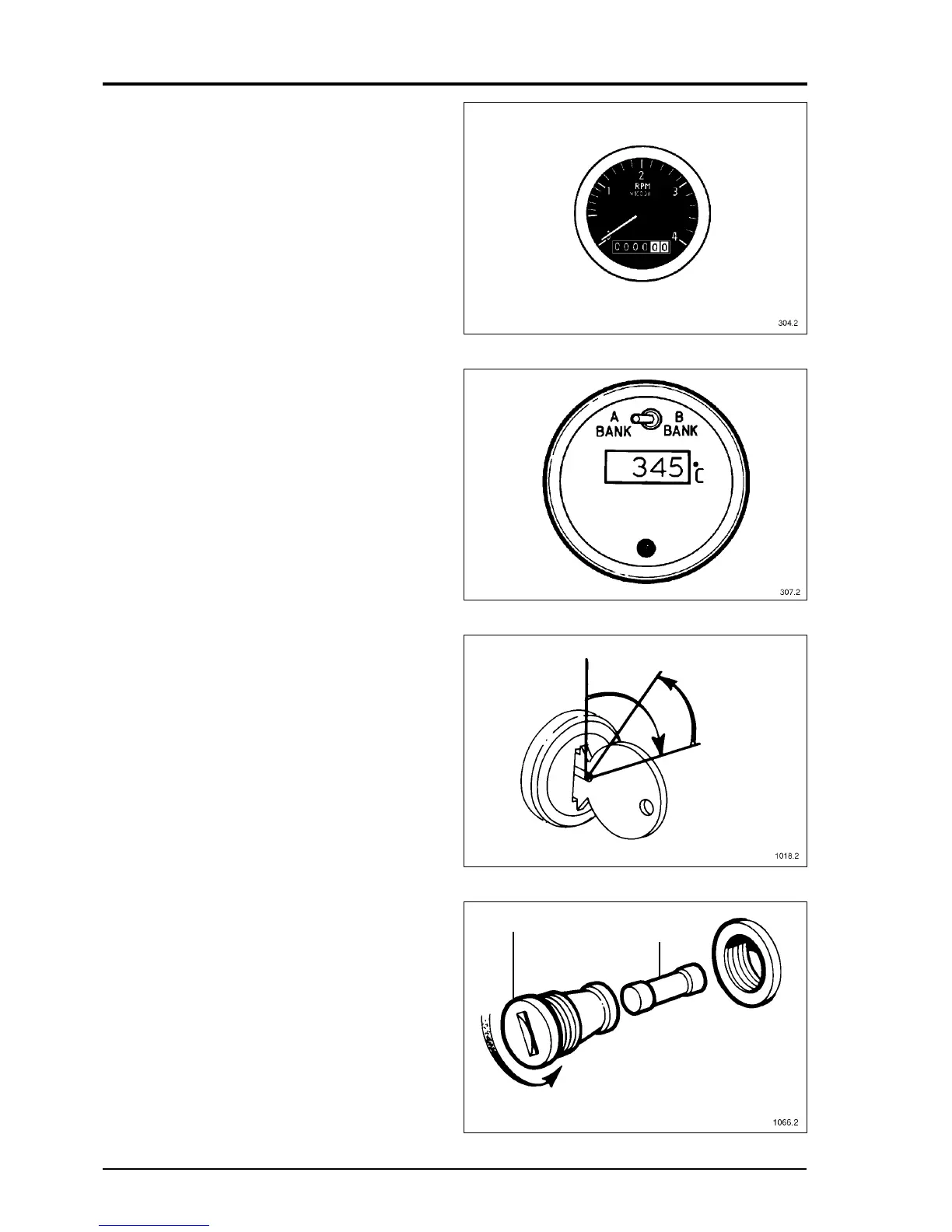

Engine tachometer and hour counter
(revolutions per minute x 1000 and hours)
Fig. 14.
The electrically operated tachometer/hour
countershowsthespeedoftheengineinr/
min. and the actual operating hours the en-
gine has run. The tachometer/hour counter
starts operating from an alternator voltage of
12 V onwards, which has already been
reached at engine idling speed.
Exhaust temperature gauge
Temperature range -20 +800°C
The gauge shows readings of turbine outlet
temperature Fig. 15.
Key switch (3 position) (Off/run/start)
The hand operated keyswitch with switch
lock is moved by a separate key to the posi-
tions shown, (see Fig. 16)viewedfromfront
of switch.
Fuse holder
To protect the instrument panel a 2 amp fuse
is fitted to remove the fuse (1) unscrew its
holder (2) (see Fig. 17).
Fig. 14
Fig. 15
Fig. 16
1
2
3
Fig. 17
1
2
