Perkins 4008 - Engine Wiring (Manual Start)

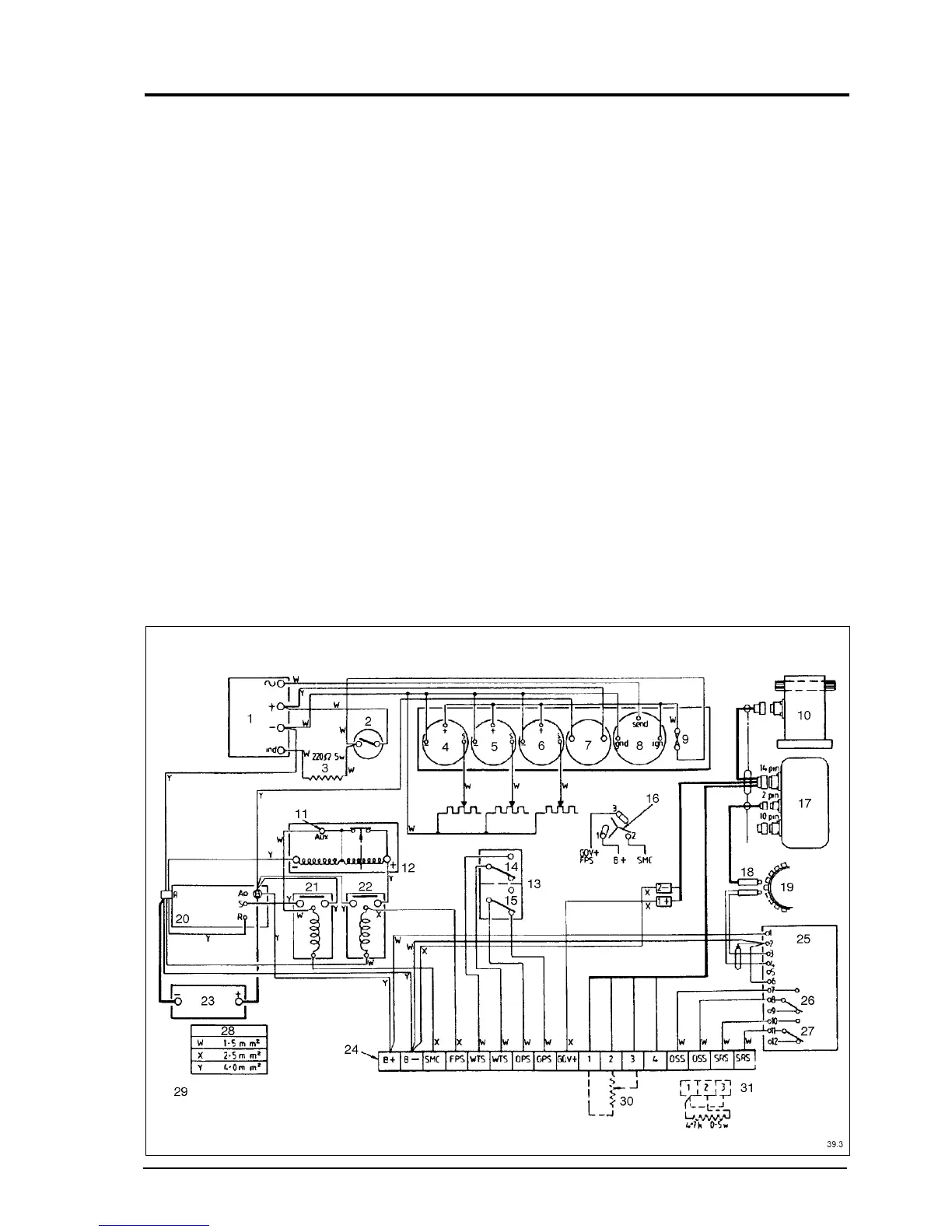

WIRING DIAGRAM, ENGINE WITHOUT REPEATER (MANUAL START)
4006/8 Diesel, May 1998 51
Key
(Fig. 50)
1. Charging alternator
2. Oil pressure switch
3. Resistor
4. Water temperature gauge
5. Oil temperature gauge
6. Oil pressure gauge
7. Ammeter
8. Tachometer
9. 2 Amp fuse
10.Governor actuator
11.Aux terminal gives a battery negative
signal fully energised
12.Fuel solenoid energised to run
45.0 Amps inrush
0.75 Amps holding
13.Combined engine fault switch
14.Water temperature
15.Oil pressure
16.Key switch if required
17.Governor control box
18.Magnetic pick-ups
19.Engine flywheel
20.Starter motor
21.Starter relay
22.Fuel solenoid relay
23.24 volt starting relay
24.Typical terminal block
25.Two switch speed box
26.Switch 2 overspeed
27.Switch 1 speed ref
28.Wire sizes
29.Toenableenginetorunimmediatelyon
depressing start button both GOV and FPS
must be fed 24 volt +ve to stop break +ve
supply
30.Speed trim pot
31.If speed trim pot is not required remove
and connect thus
Fig. 50
