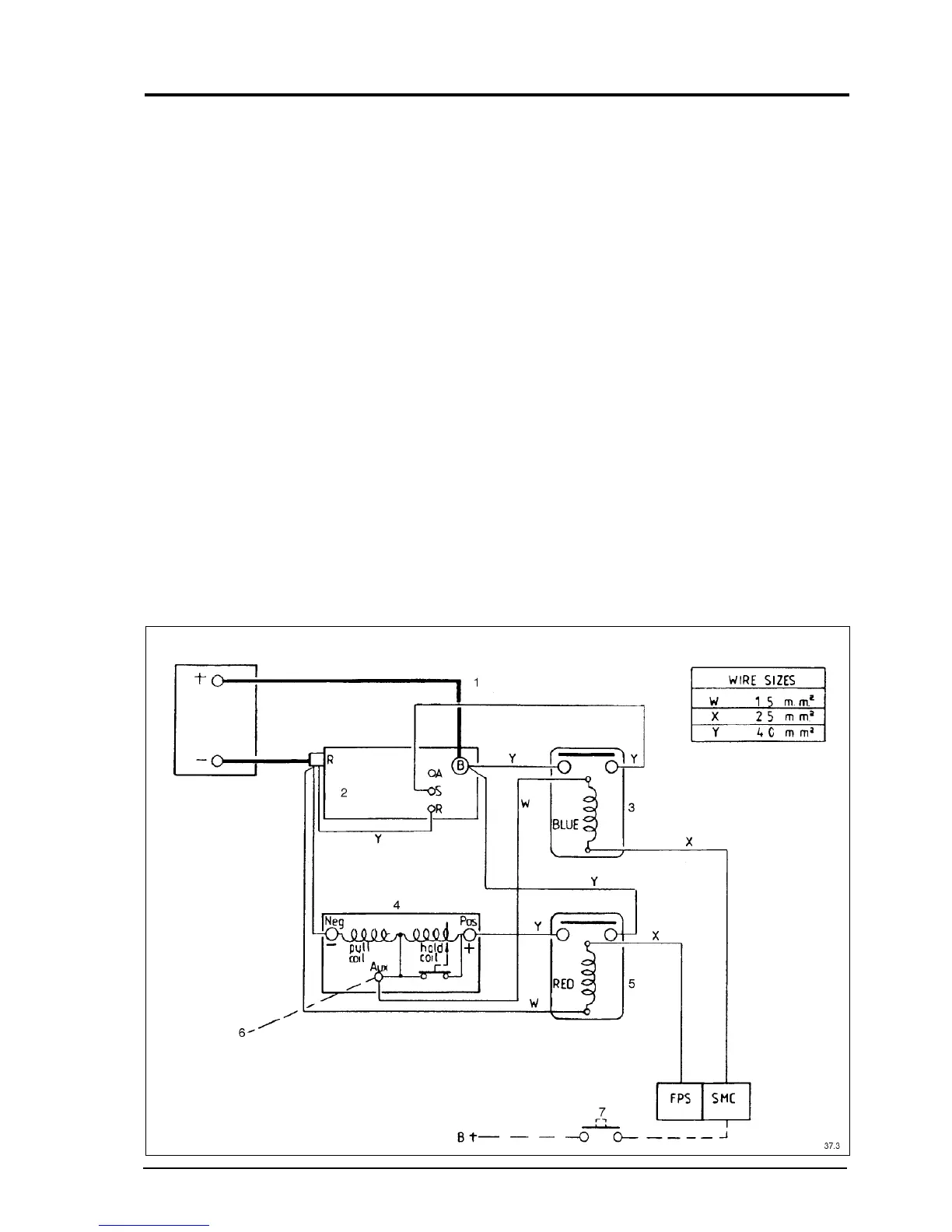

WIRING DIAGRAM, CAV STARTER WITHOUT REPEATER RELAY
4006/8 Diesel, May 1998 49
Key
(Fig. 48)
1. 24 volt starting batteries
2. CAV Starter motor
3. Start relay
4. Fuel stop solenoid
35.0 Amps inrush
0.75 Amps holding
Energised to run
5. Fuel stop solenoid relays
6. NOTE: Aux terminal gives a battery
negative signal when solenoid is fully
energised. To enable engine to run
immediately on depressing start button
F.P.S. must be fed positive +ve
7. Start button
Fig. 48
