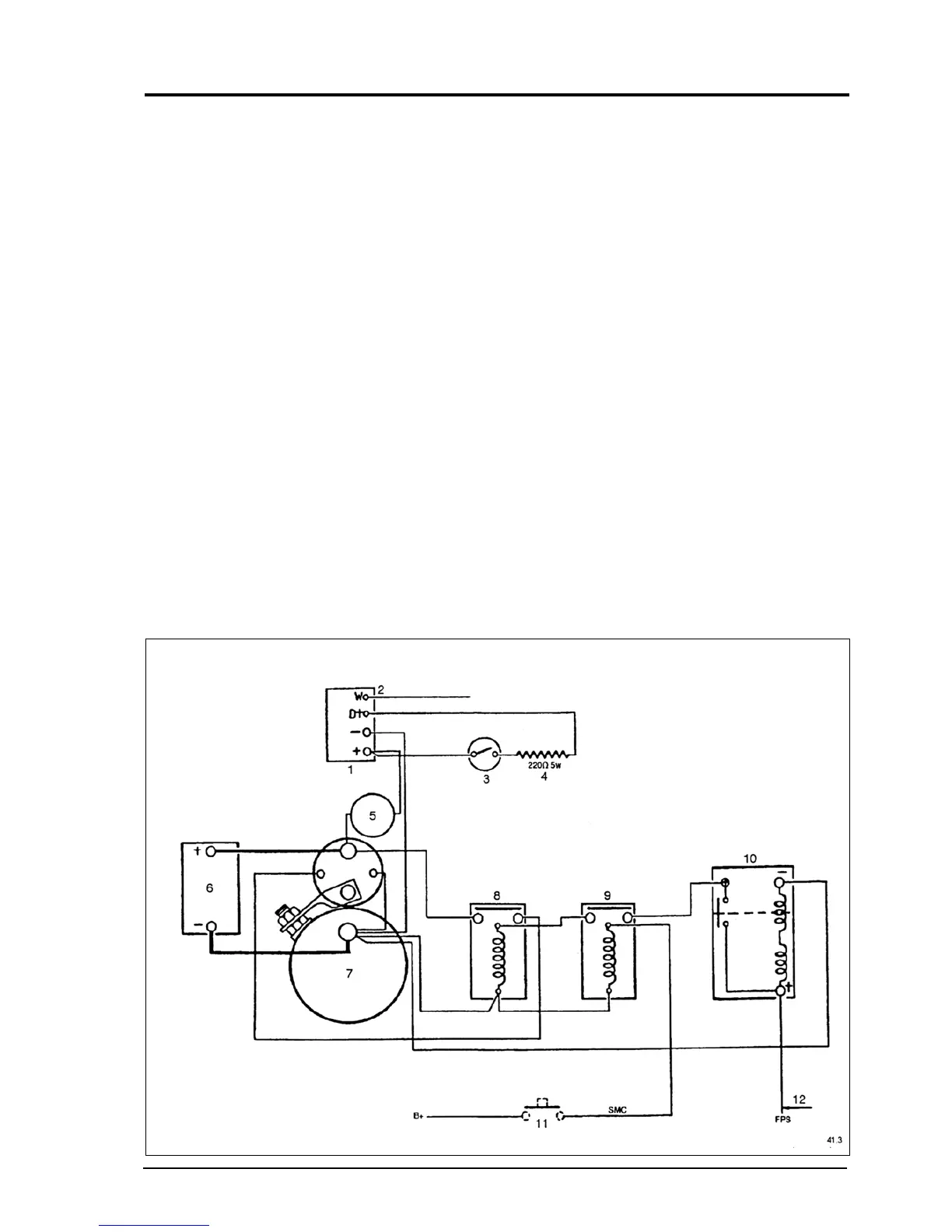

WIRING DIAGRAM, PRESTOLITE STARTER WITHOUT REPEATER RELAY
4006/8 Diesel, May 1998 53
Key
(Fig. 52)
1. Charging alternator
2. Signal for tacho
3. Oil pressure switch
4. Resistor
5. Ammeter
6. 24 volt starting batteries
7. Starter motor
8. Starter relay
9. Relay to allow fuel solenoid to energise
before crank
10.Fuel stop solenoid energised to stop
45 Amps inrush
11.Start button
12.Must be +ve immediately on start
Fig. 52
