Perkins 4008 - Prestolite Starter with Repeater Relay

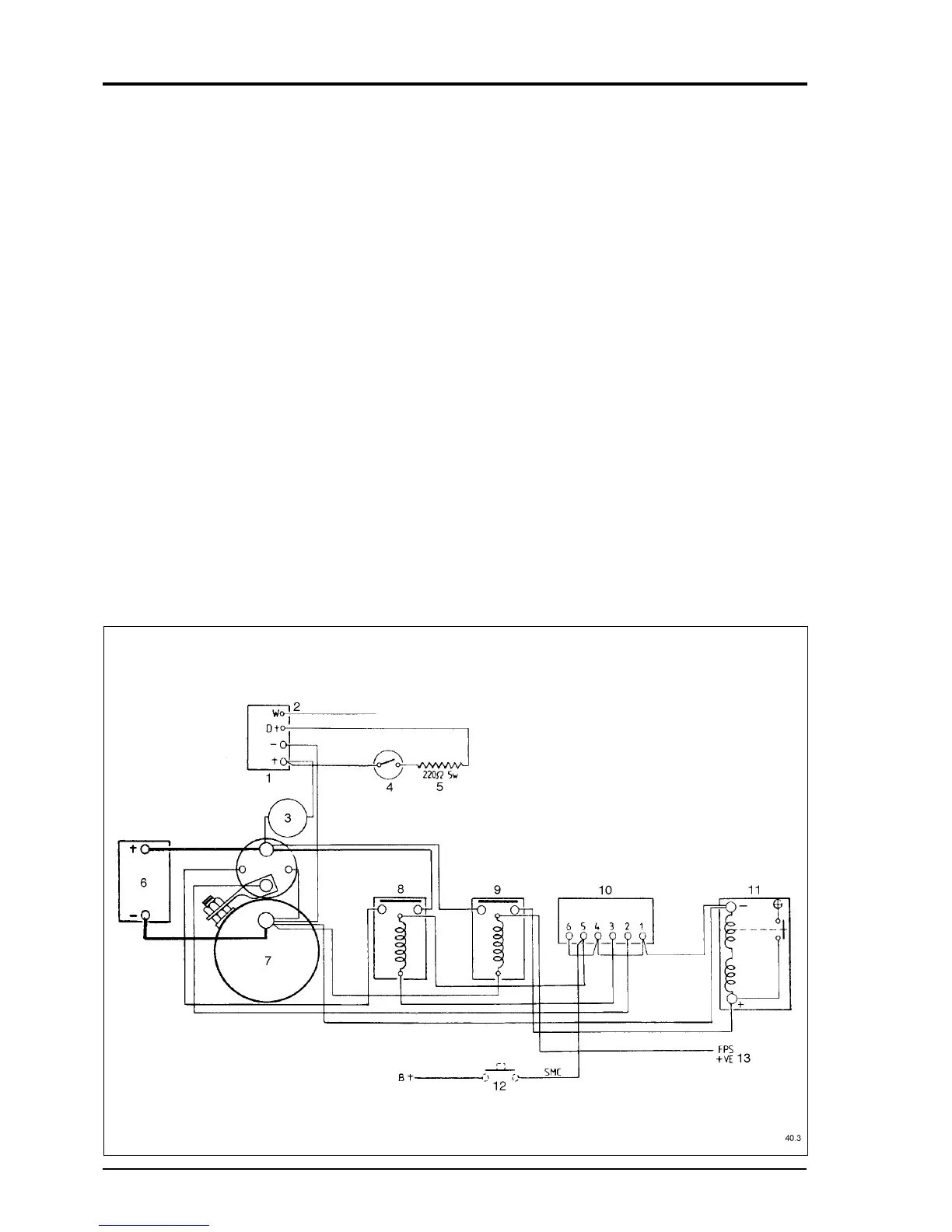

WIRING DIAGRAM, PRESTOLITE STARTER WITH REPEATER RELAY
52 4006/8 Diesel, May 1998
Key
(Fig. 51)
1. Charging alternator
2. Signal for tacho
3. Ammeter
4. Oil pressure switch
5. Resistor
6. 24 volt starting batteries
7. Starter motor
8. Starter relay
9. Fuel solenoid relay
10.Repeat start unit
11.Fuel stop solenoid energised to stop
45.0 Amps inrush
0.75 Amps holding
12.Start button
13.To stop
Fig. 51
