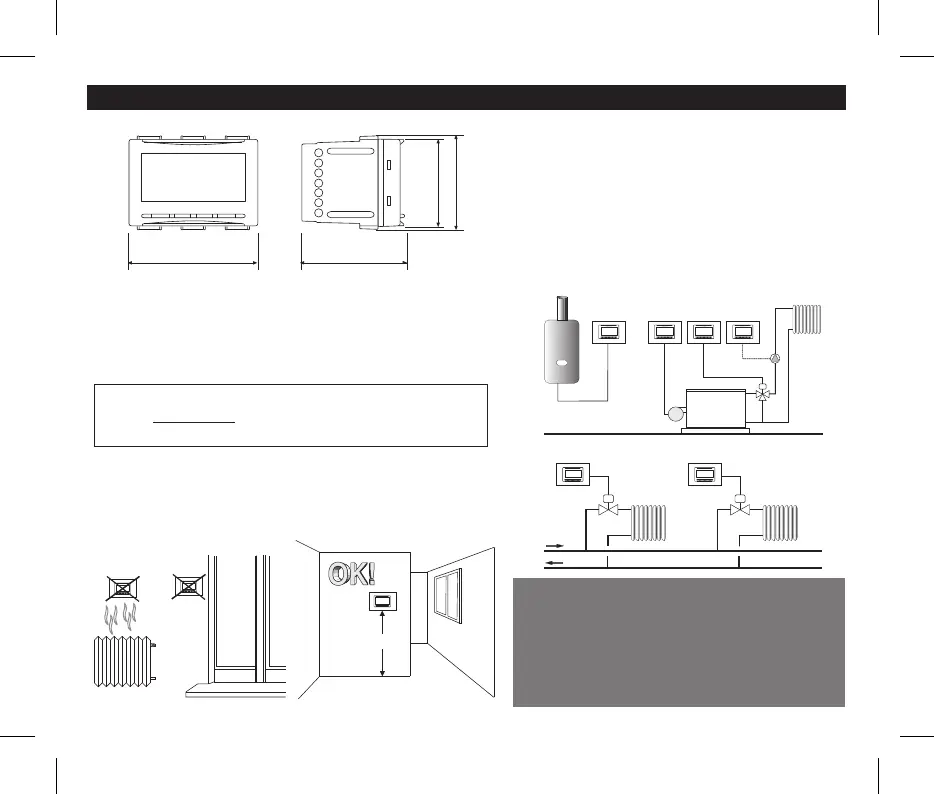

5.3 - INSTALLATION EXAMPLES
Thermostat installation: independent - fixed
recessed in rectangular box 3 civil modules or higher.
Install the thermostat at a height of 1,5 m ÷ 1,7 m from the floor, far00
from heat sources, air vents, doors or windows and anything else that
.could affect its operation
Important: the installation and electrical connection of the devices and appli-
ances must be implemented by qualified personnel and in conformity with
current laws and regulations. The manufacturer declines all liability in connec-
tion with the use of products subject to special environmental and/or installa-
tion standards.
Disconnect the 230V~ mains power supply
Examples of installation in heating systems with a
thermostat that controls:
A .) Wall mounted boiler
B .) Burner or Circulation pump or Motorized solenoid valve
C Zone .) solenoid valve
(example for floor system or other)
5.2 - INSTALLATION REGULATIONS
C C
AB BB
h 1,5 m
5265
43,5
47
8
WARNING! When mounting the front panel on the thermostat module,
take care the heat-conducting part, see the warning andNOT to remove
instructions on the accompanying leaet.
N.B.: .the examples contained in this documentation are in principle
5 - INSTALLATION
5.1 - DIMENSIONS
IMPORTANT: for the assembly procedure
of the thermostat with the chosen
residential plate, follow instructions
contained in the specific compatibility
sheet contained in the package.
