Care and maintenance
10 - 4

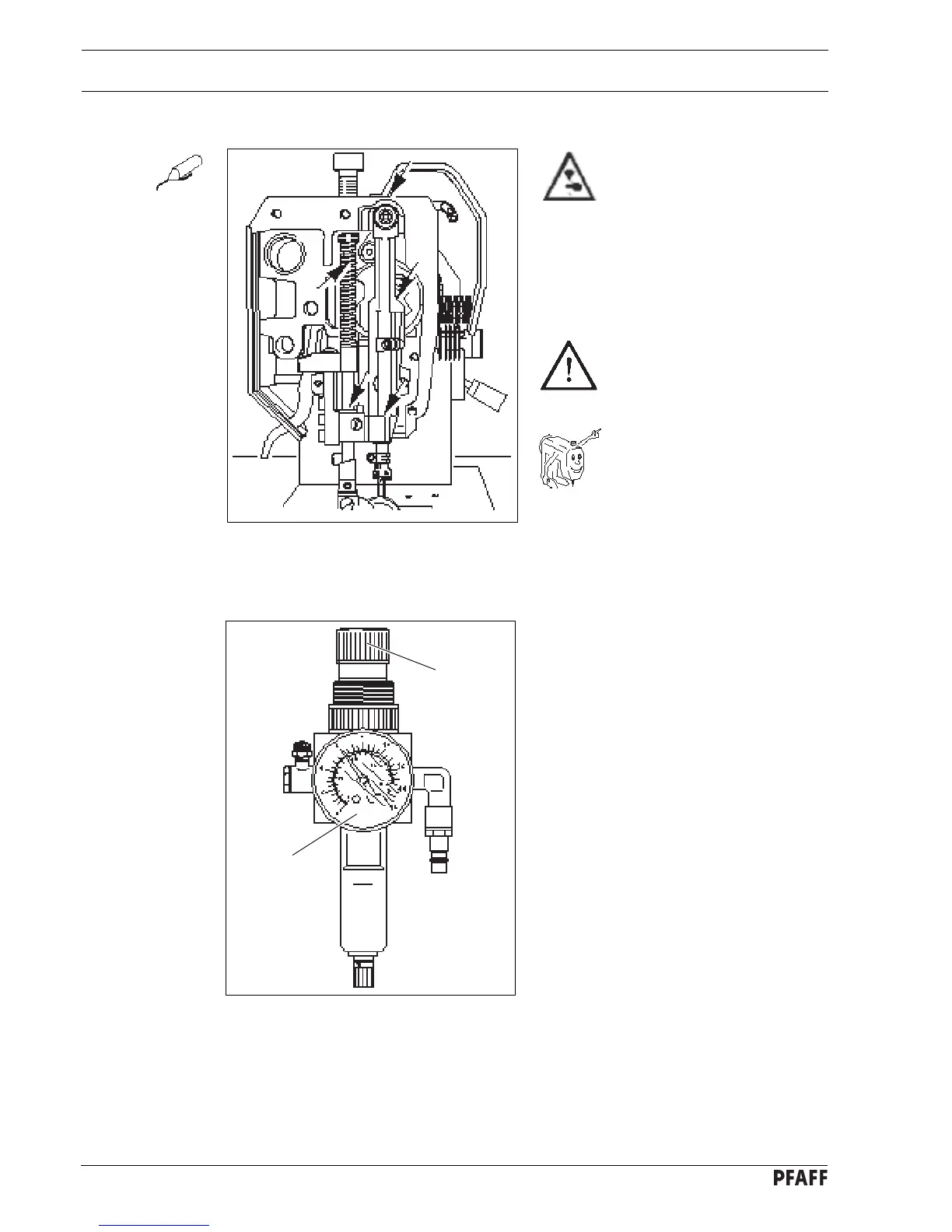

10.05 Lubricating the needle head parts
Turn the machine off!
Danger of injury if the machine
is started accidentally!
● Unscrew the face plate.
● Lubricate all bearings and moving parts
(see arrows) twice a week.
● Re-fit the face plate.
Only use oil with a mean
viscosity of 22.0 mm
2
/s at 40º C
and a density of 0.865 g/cm
3
at 15º C!
We recommend PFAFF sewing
machine oil. Order-No.
280-1-120 144.
Fig. 10 - 04
Fig. 10 - 05
10.06 Checking and adjusting the air pressure
● Before each use of the machine, check
the air pressure on gauge 1.
● The gauge 1 must display a pressure of
6 bar.
● If necessary, alter the pressure to this
level. To do so, lift knob 2 and turn it until
the required pressure is reached.
2
1
