Adjustment
11 - 32
11.05.09 Catch
Requirement
With the thread trimming mechanism in resting position, there must be a distance of
approx. 5 mm between catch 1 and control lever 6.

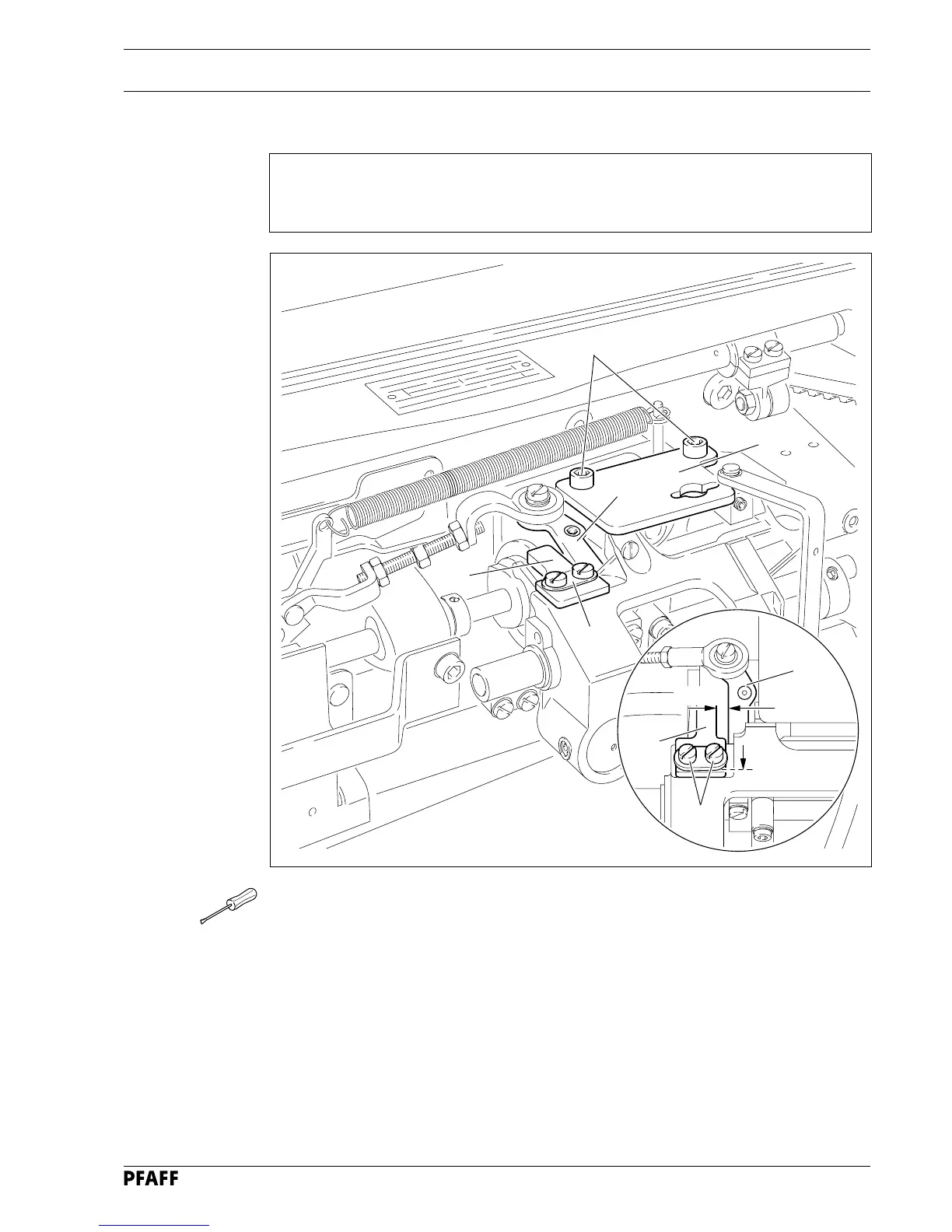

Fig. 11 - 30
● Lightly affix catch 1 and cover plate 2 using screws 3.
● Move catch 1 as far as possible in the direction of the arrow and then move it laterally in
accordance with the requirement.
● In this position, tighten screws 3.
● Using screws 5, screw plate 4 on.
6
5
4
2
6
1
5 mm
3
1
