Adjustment
11 - 33
11
.05.10

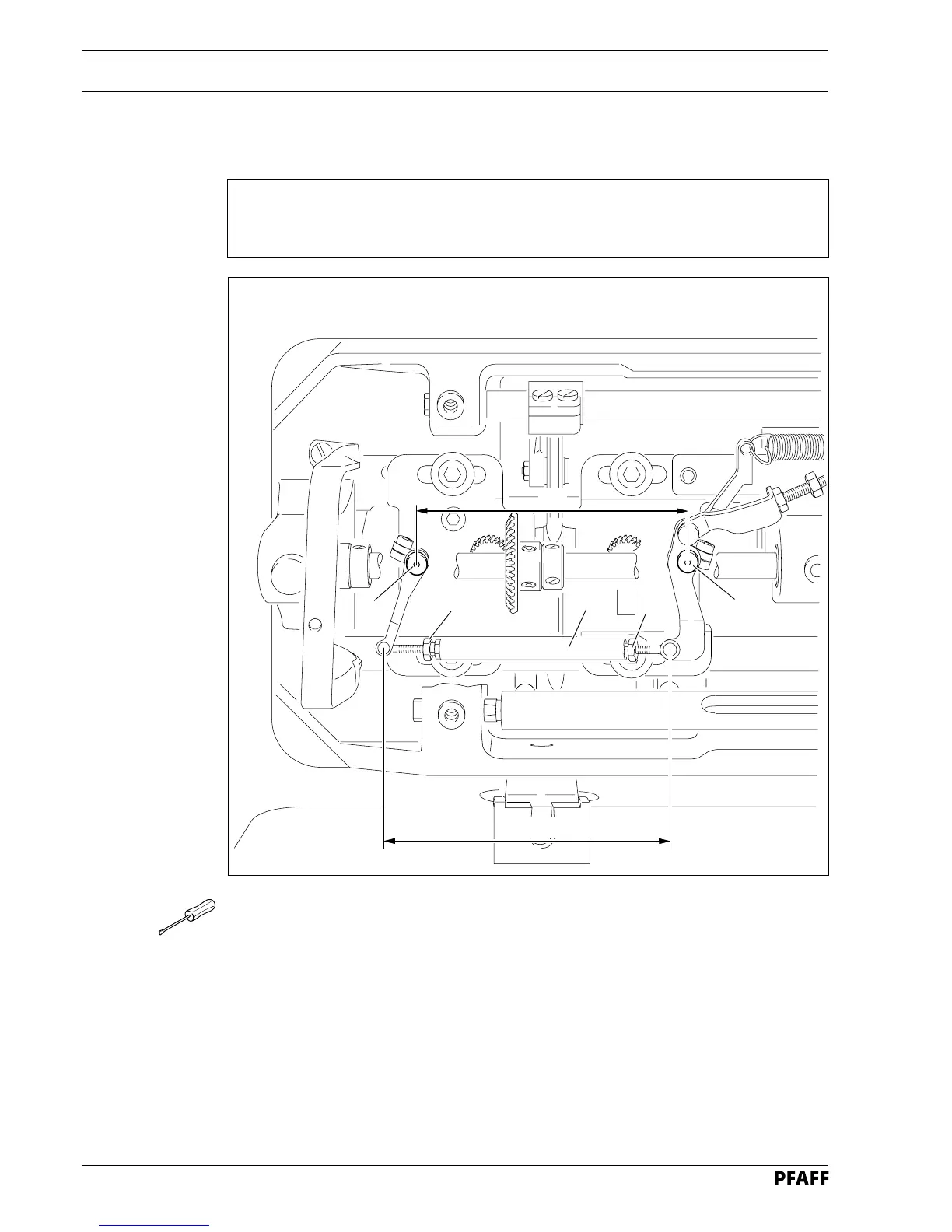

Thread trimmer linkage
(only for two-needle machines)
Requirement
With the thread trimming mechanism in resting position, the length of the linkage rod
2
should be equal to the distance between shaft
3
and shaft
4
.
Fig. 11 - 31
●
Loosen nuts
1
(right- and left-hand thread) .when the thread-trimming mechanism is in
the off-position.
●
Move linkage rod
2
in accordance with the requirement
●
Re-tighten nuts
1
.
2
3
4
11
X
X
71
73
