Pfaff 1244

Adjustment
11 - 27
11.05.04 Engaging solenoid
Requirement
In needle rise position and with engaging solenoid 5 activated, there must be a distance
of 0.3 mm between engaging lever 2 and pawl 3.

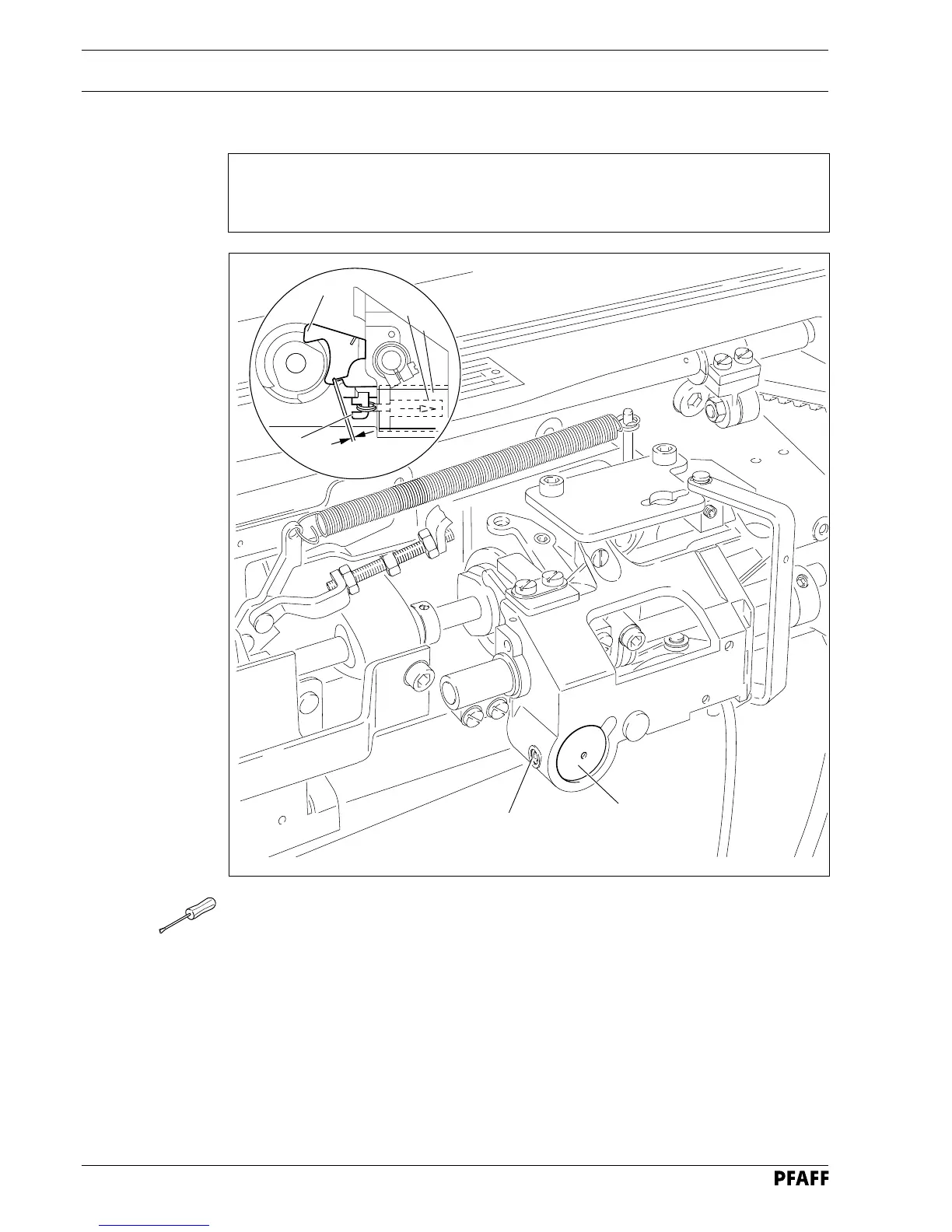

Fig. 11 - 25
● Bring the machine to needle rise position by turning the balance wheel.
● Loosen screw 1 until the engaging solenoid can be turned with difficulty.
● Manually activate engaging lever
22
22
2 so that pawl 3 engages.
● Press solenoid planger 4 as far as possible into solenoid housing 5 and move both the
solenoid housing and the solenoid planger in accordance with the requirement.
● In this position tighten screw 1.
2
3
0.3 mm
4
5
5
1
