Pfaff 1244

Adjustment
11 - 8
11.04.07 Driving motion of the feed dog (for PFAFF 244, 1243 and 1244)
Requirement
With the longest stitch set and the needle bar at its TDC, the feed dog should not move
when the reverse-feed lever is operated.

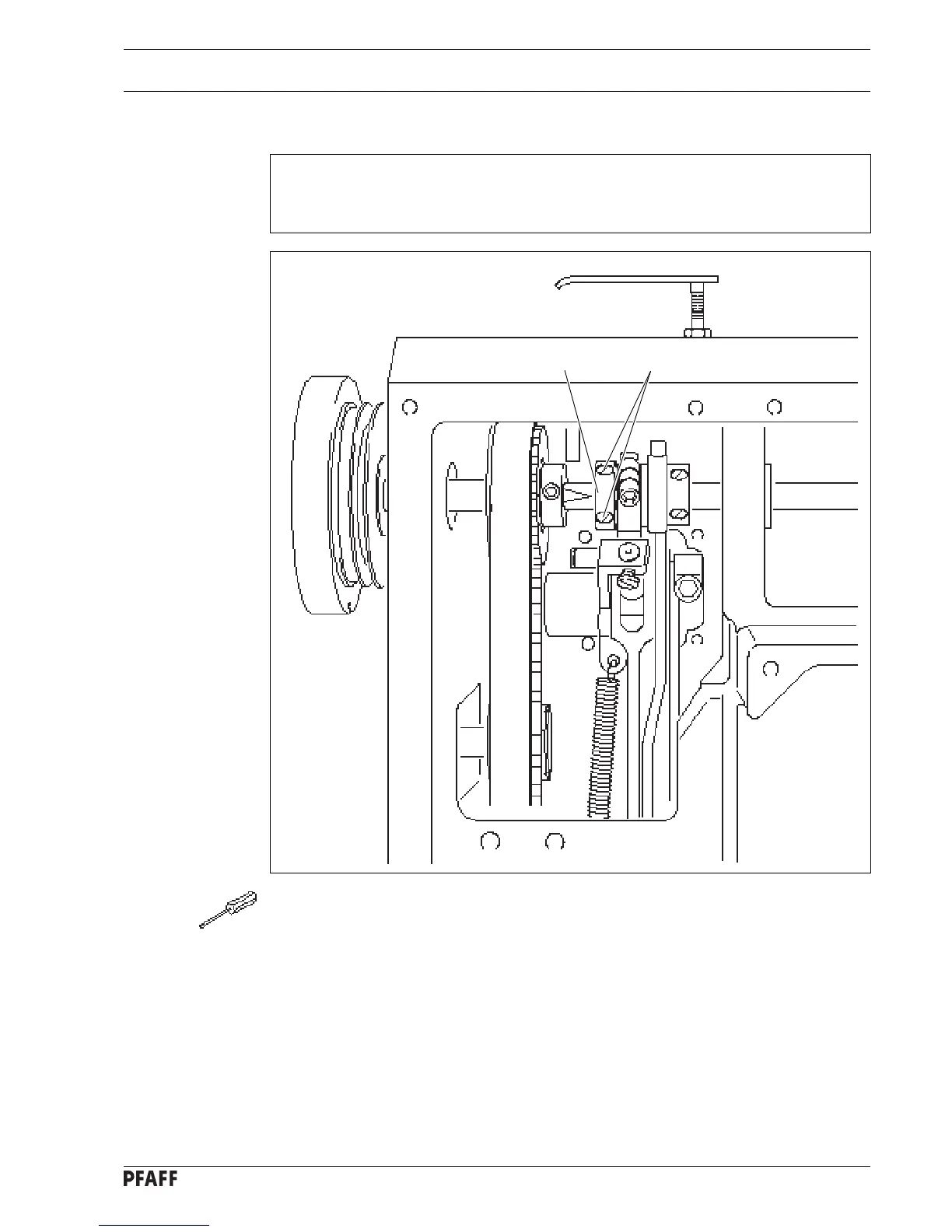

Fig. 11 - 07
● Set the longest stitch.
● Loosen screws 1 far enough so that the eccentric 2 can only be turned on the shaft with
difficulty.
● Bring the needle bar to its TDC.
● Turn eccentric 2 so that its largest eccentricity is facing „downwards“, then turn it a little
in the direction of rotation in accordance with the requirement.
● Tighten screws 1.
1
2
