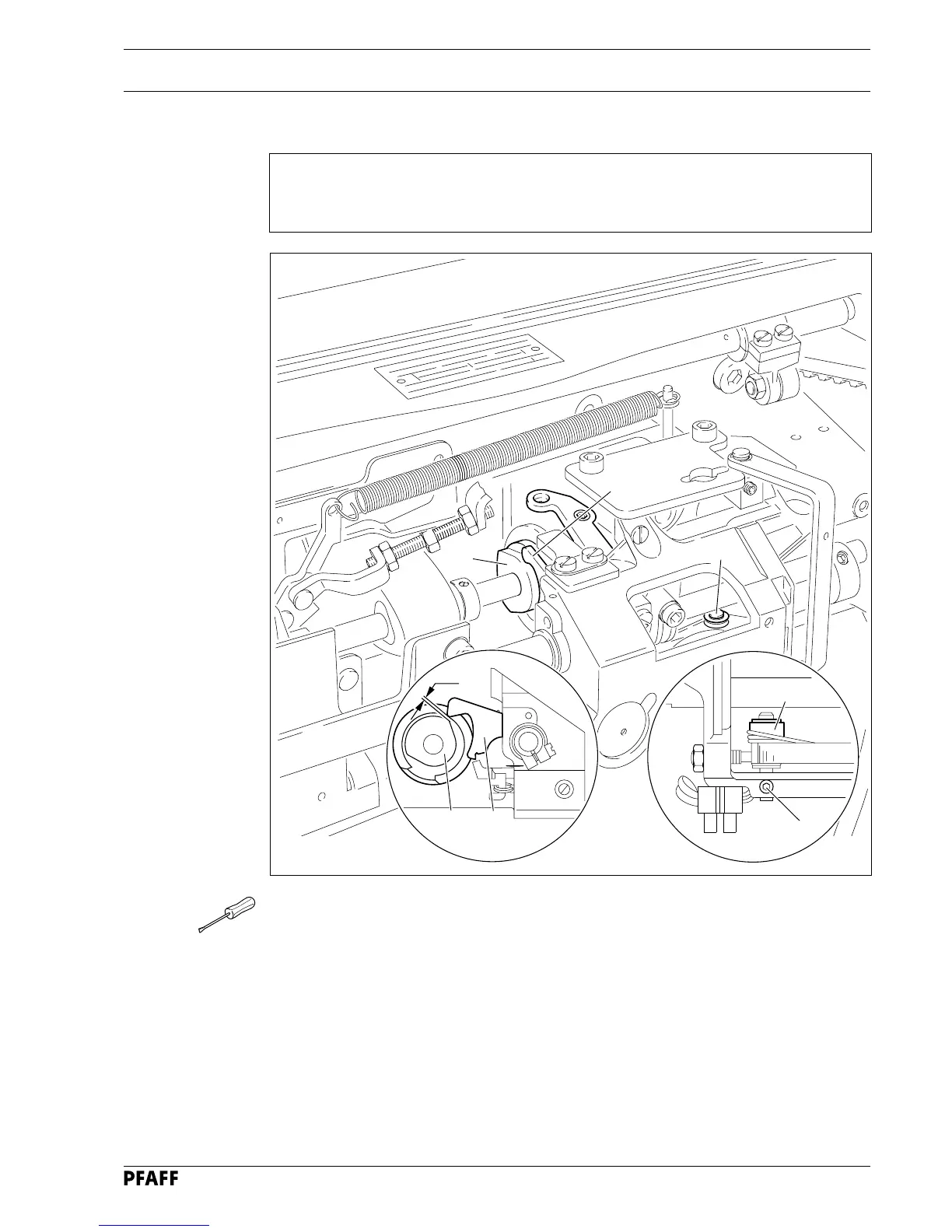

Adjustment
11 - 26
11
.05.03
Pawl
Requirement
With the thread-trimming mechanism in resting position, there must be a distance of
0.3
mm
between the largest eccentricity of control cam
1
and pawl
2
.
●
Position the largest eccentrictiy of control cam
1
underneath pawl
2
by turning the
balance wheel.
●
Move bearing bolt
3
(screw
4
) in accordance with the
requirement.
Fig. 11 - 24
4
3
2
1
3
1
0.3 mm
2
64
66
