Pfaff 1244 Service Manual

Adjustment
11 - 11
11.04.10 Basic position of the roller presser drive (only in machines with subcl. -4/01)
Requirement
1. With the longest stitch setting the clamping surfaces of lever 1 must be horizontal,
when these are at their front point of reversal.
2. Lever
33
33
3 must be in the middle of the hole in lever 1.
3. At its rear point of reversal lever 5 must be at a distance of 18 mm (Model N) or 8 mm
(Model N8) from the side cover.

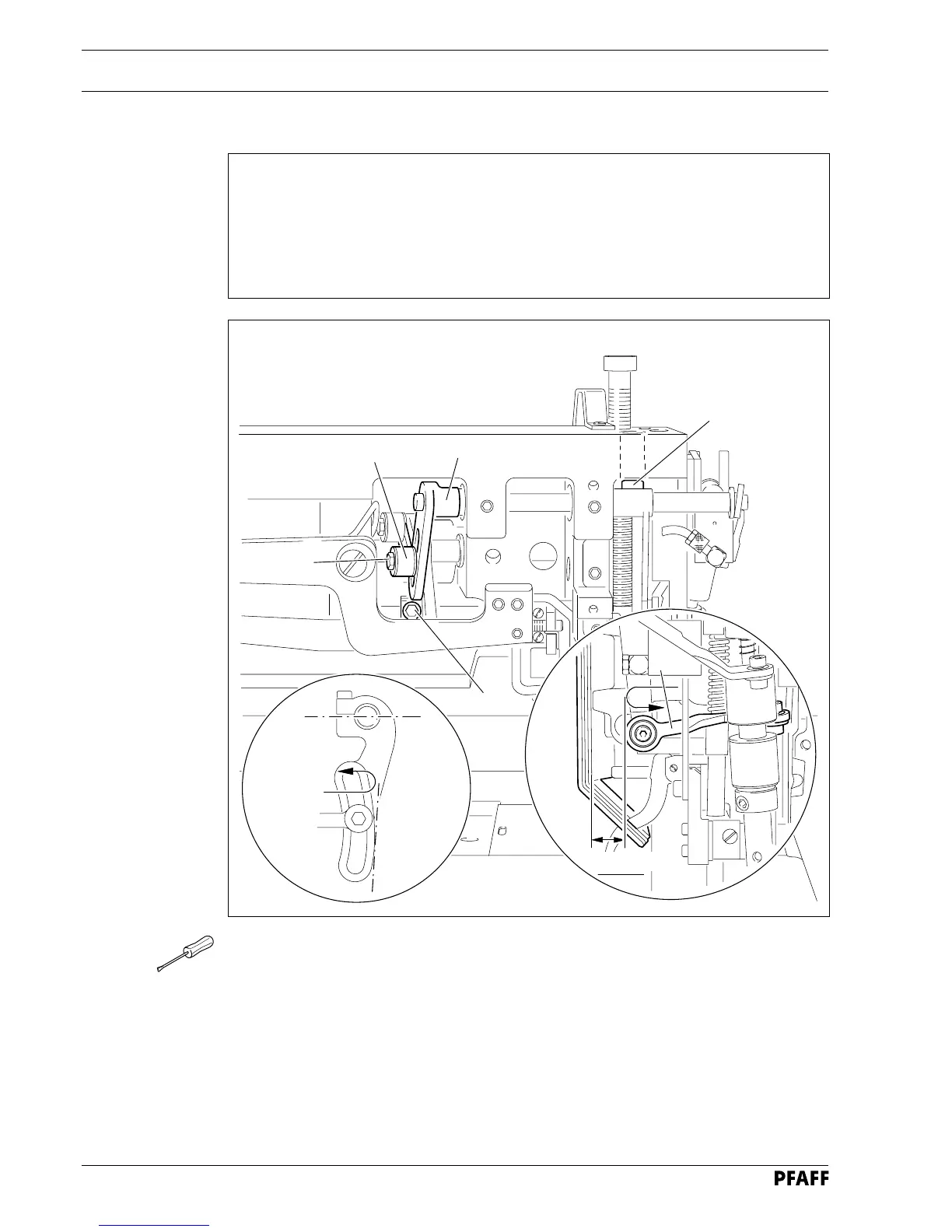

Fig. 11 - 10
● Set the longest stitch length.
● Turn lever 1 (screw 2) in accordance with the requirement 1.
● Adjust lever 3 (screw 4) in accordance with the requirement 2.
● Adjust lever 5 (screw 6, accessible from above through hole in the case) in accordance
with the requirement 3.
1
1
3
4
2
5
6
8 bzw.18 mm
