Adjustment
11 - 40
●

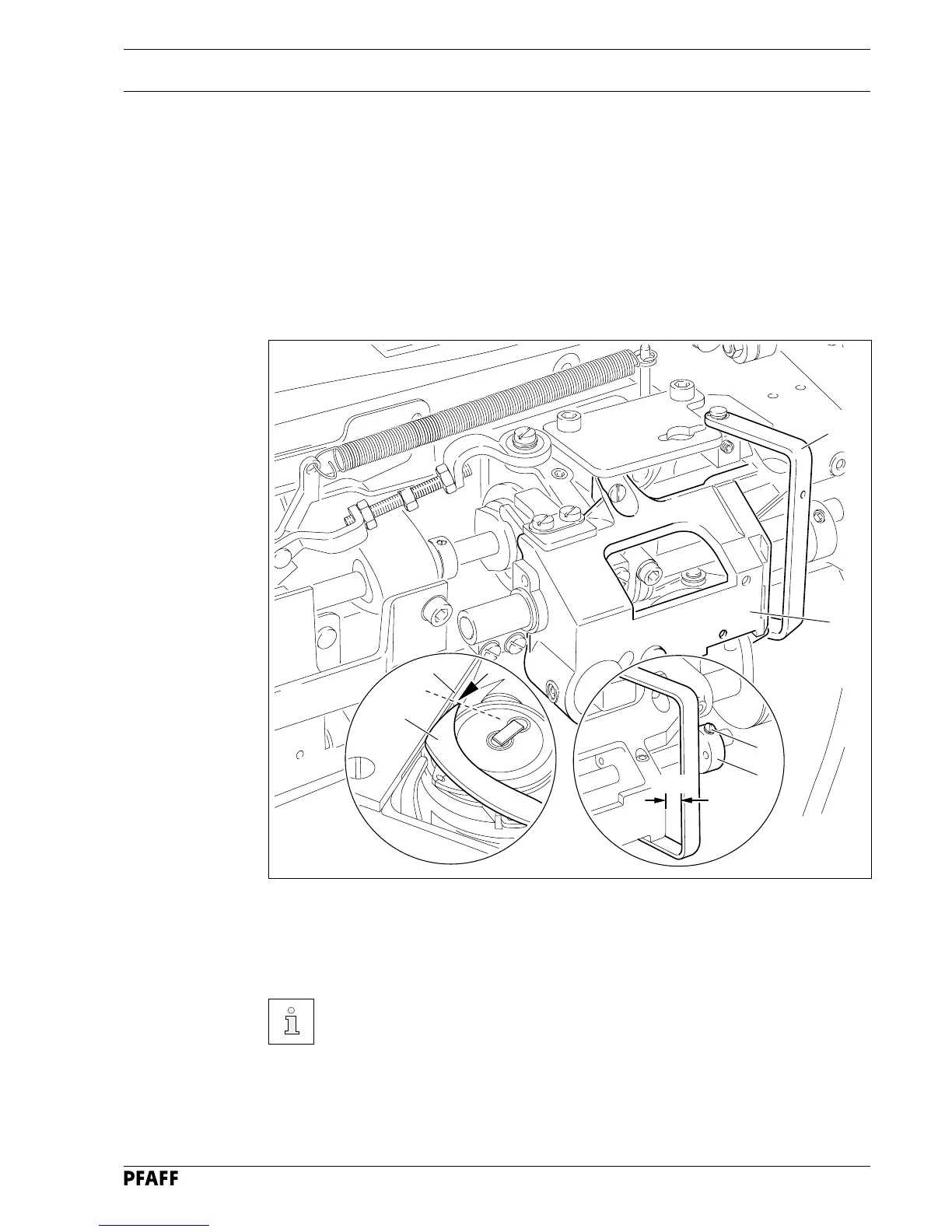

By turning the balance wheel further, position the point of thread catcher
5
at the same
height as the edge of rear stop trip
6
of the needle plate and press release bar
8
to the
left in accordance with
requirement 2
using retaining collar
7
.
●
In this position tighten screws
1
.
The eccentricity of retaining collar
7
must be pointing downwards.
Fig. 11 - 38
8
9
6
5
7
1
7 mm
78
80
