Adjustment
13
15
.04.07

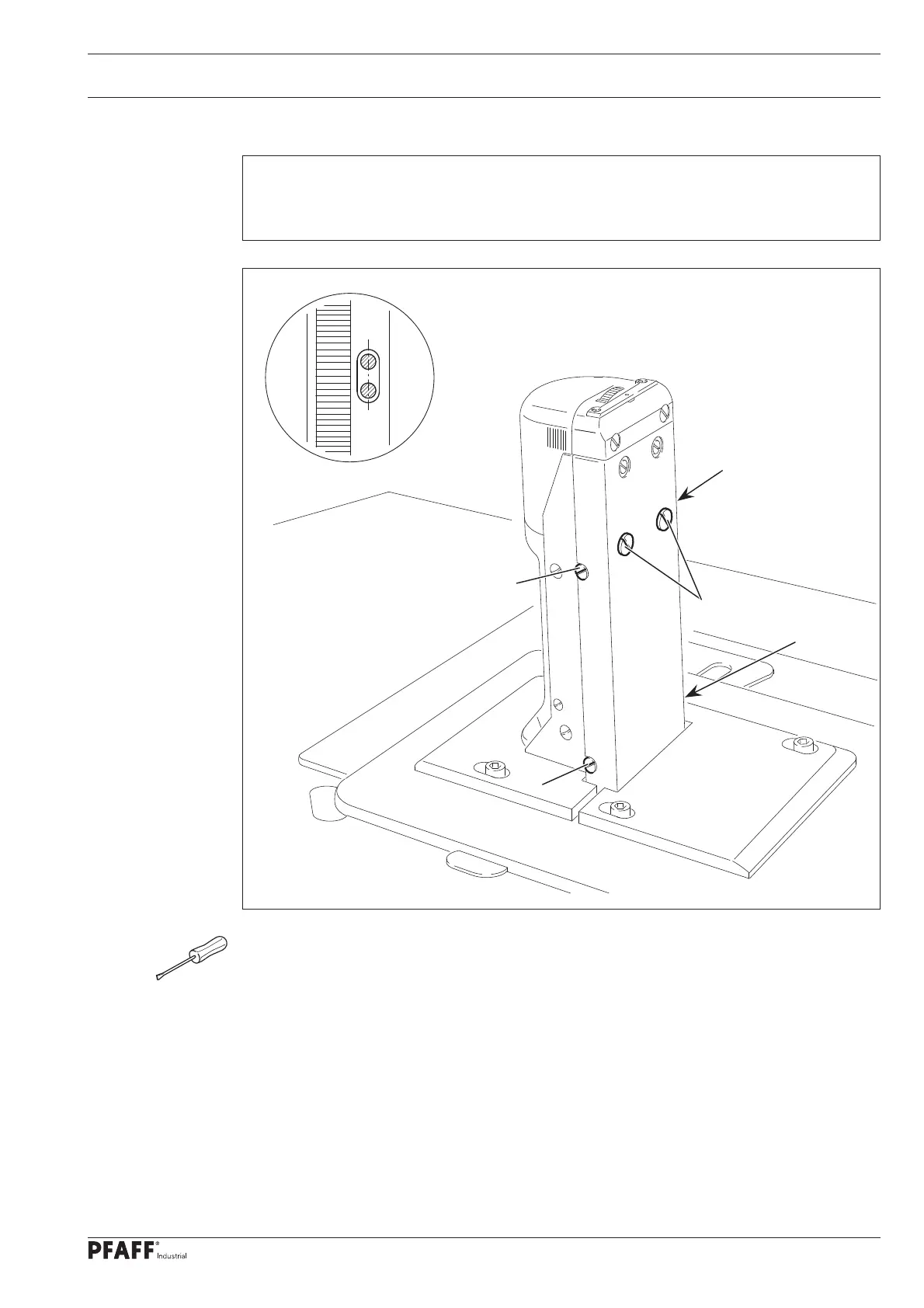

Needle position crosswise to sewing direction
(on the PF
AFF 1
571)
Requirement
F
or maximum stitc
h length adjustment, the needle should stand in the middle of the
needle hole both when entering and exiting the throat plate.
T
urn screws
1
(scre
ws
2
, on both sides of the column) according to the
rule
.
Fig. 15 - 07
2
2
2
2
1
12
14
Table of Contents
Table of Contents
3
Tools, Gauges and Other Accessories
5
Abbreviations
5
Explanation of Symbols
5
Adjusting the Basic Machine
6
Needle Pendulum Basic Setting
6
Needle Position in Sewing Direction
7
Limiting the Needle Bar Frame on the PFAFF 1571And 1591
8
Preadjusting the Needle Height
9
Needle Rise, Hook Clearance, Needle Height and Needle Guard (on the PFAFF 1571)
10
Needle Rise, Hook Clearance, Needle Height and Needle Guard (on the PFAFF 1574)
11
Needle Rise, Hook Clearance, Needle Height and Needle Guard (on the PFAFF 1591 and 1593)
12
Needle Position Crosswise to Sewing Direction (on the PFAFF 1571)
13
Needle Position Crosswise to Sewing Direction (on the PFAFF 1574)
14
Needle Position Crosswise to Sewing Direction (on the PFAFF 1591 and 1593)
15
Height and Stroke of the Bobbin Case Opener
16
Height of the Feed Wheel (on the PFAFF 1571)
17
Height of the Feed Wheel (on the PFAFF 1574)
18
Height of the Feed Wheel (on the PFAFF 1591 and 1593)
19
Clearance between Roller Presser and Feed Wheel
20
Roller-Presser
21
Hold-Down Device (Only with PFAFF 1574)
22
Automatic Presser-Foot Lifter
23
Knee Lever
24
Tension Release
25
Thread Check Spring (on to PFAFF 1571; 1591 and 1593)
26
Thread Check Spring (on the PFAFF 1574)
27
Thread Tension Control -906/11 (on the PFAFF 1591)
28
Bobbin Winder
29
Roller-Presser Pressure
30
Lubrication
31
Re-Engage Safety Coupling
32
Adjusting the Edge Trimmer -725/04
33
Position of the Knife Holder (on the PFAFF 1574 and 1591)
34
Position of the Knife Holder (on the PFAFF 1571)
34
Knife Stroke (on the PFAFF 1571)
35
Knife Stroke (on the PFAFF 1574 and 1591)
36
Cutting Stroke (on the PFAFF 1571)
38
Cutting Stroke (on the PFAFF 1574 and 1591)
38
Knife Position
39
Adjusting the Thread Trimmer -900/81
40
Resting Position of the Roller Lever / Radial Position of the Control Cam
40
Position of the Thread Catcher Holder
41
Distance between Thread Catcher and Needle Plate
42
Position of the Thread Catcher
43
Knife Position and Knife Pressure
44
Bobbin Thread Retaining Spring
45
Manual Cutting Test
46
Linkage Rod (Only on the PFAFF 1574)
47
Parameter Settings
48
Overview of Parameter Functions (with BDF S5)
48
Overview of Parameter Functions (with BDF P1)
49
Parameter Input Example (with BDF S5)
50
Parameter Input Example (with BDF P1)
51
Parameter List for Control DAC Compact
53
Error Messages and Description
58
Sewing Motor Errors
60
Warning Messages
60
Update (with SD Card or USB)
61
Circuit Diagrams
62
