13.05 Adjust edge trimmer -725/04
13
.05.01 Knife carrier position (on the PFAFF 1571)
Rule
When the edge trimmer is switched on and the adjusting wheel 1 is turned until you feel
it reach the upper stop,
1. the knife carrier 2 should be parallel to the post and
2. the upper edge of the needle plate should be at the centre of the knife angle.
 Turn the adjusting wheel 1 until you feel it reach the upper stop and switch on the edge
trimmer.
 Adjust the knife carrier 2 (screw 3) according to the rule.

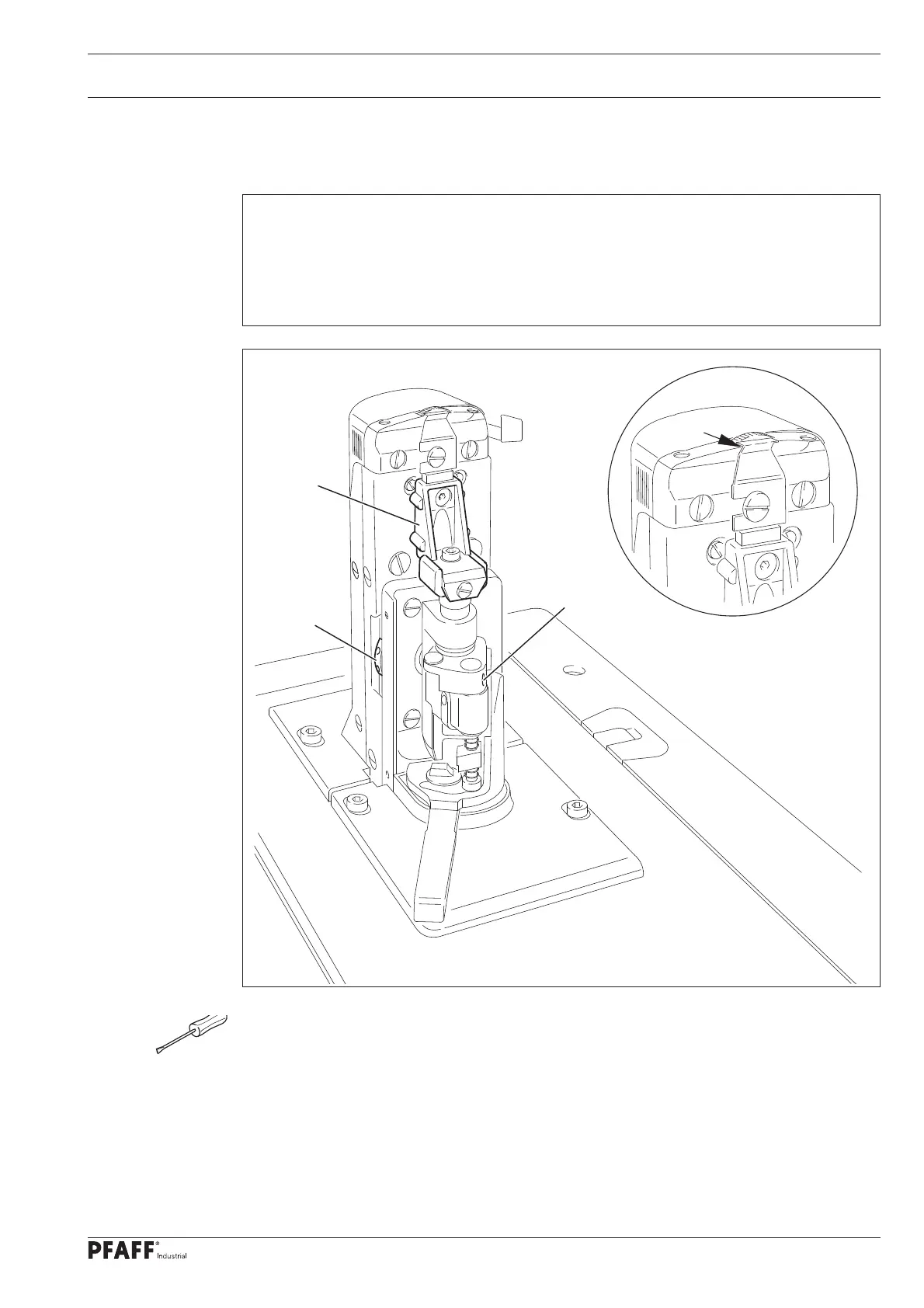

Fig. 15 - 23
3
2
1
