Pfaff 1571 Adjustment Manual

Adjustment
22
15.04.13a Hold-down device (only with PFAFF 1574)
 Move hold-down device 1 (screw 2) according to requirement 3.
 Move bracket 3 (screw 4) according to requirement 1 and 2
Requirement
The hold-down 1 should
1. seen in the sewing direction as close as possible to the needle and
2. Stand in the middle of the needle, seen across the sewing direction.
3. When the roller presser is seated, the distance between the hold-down device 1 and
the sewing material 0.2 - 0.3 mm.

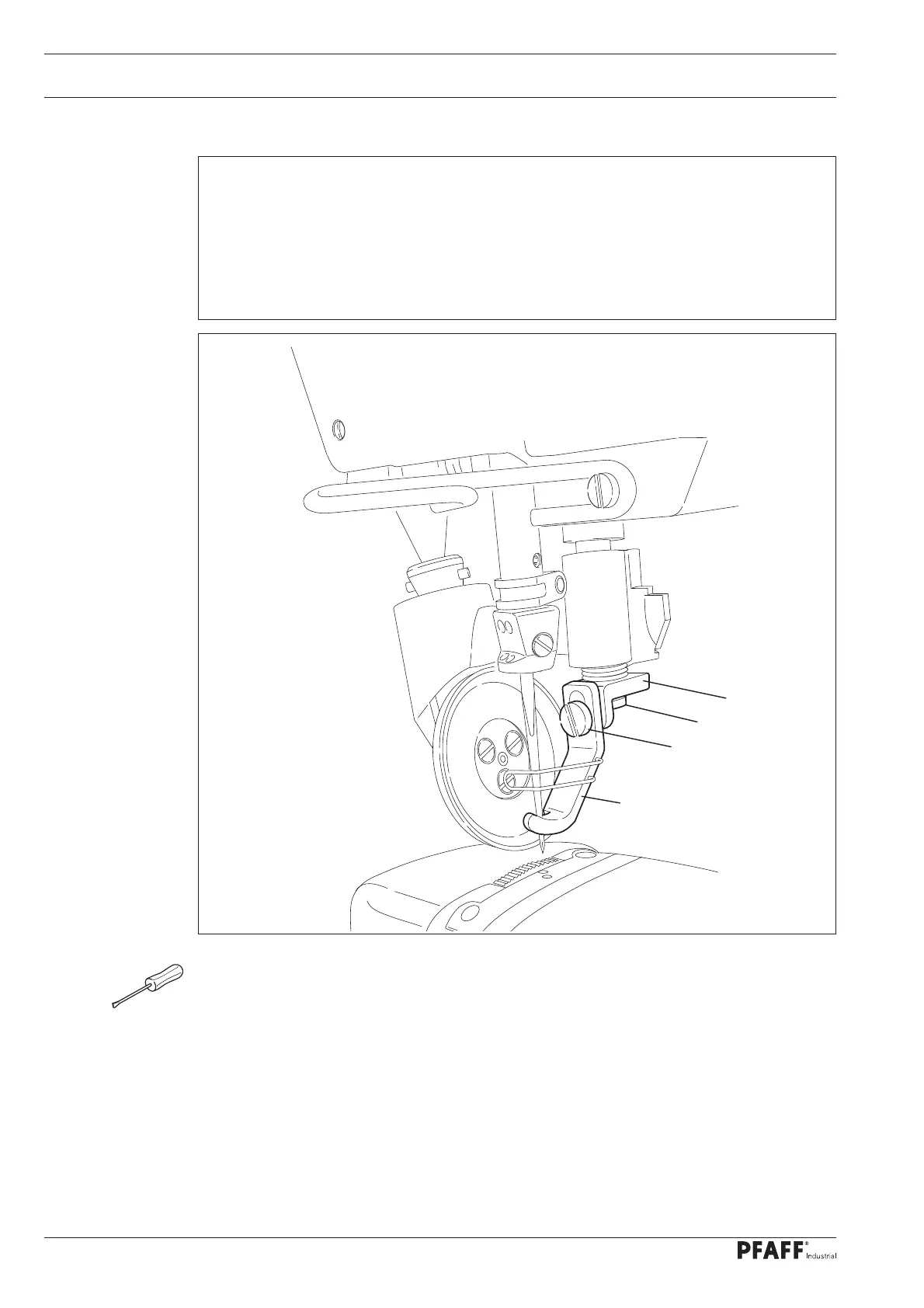

Fig. 15 - 13a
1
3
4
2
