Pfaff 1571 Adjustment Manual

Adjustment
7
15.04.02 Needle position in the direction of sewing
2
3
1

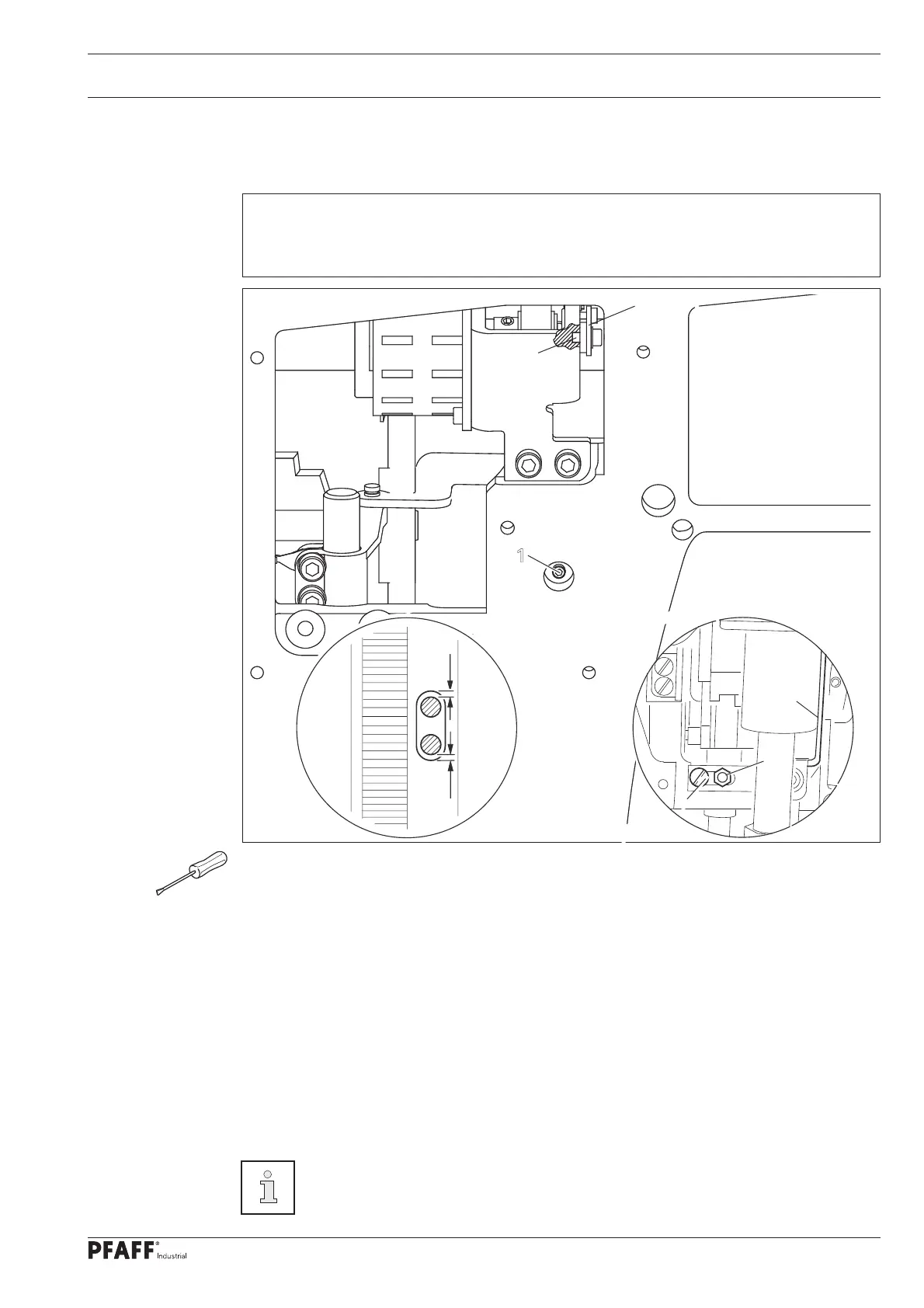

Fig. 15 - 02
 Switch on the machine and set the stitch length at "5".
 Switch the machine off and on (synchronization of the needle bar to the stitch length).
 Sew one stitch and check the rear position of the needle in accordance with the requirement.
 Pedal max. press backwards!
 Press the stitch changeover key and check the front and rearposition of the needle in ac-
cordance with the requirement.
 Switch off the machine, slightly loosen screw 5 and nut 6.
 To carry out the adjustment, loosen screw 1 through the hole on the back of the case.
 Guide the bent part of the adjustment pin through the elongated hole on the rear side oft-
he case and insert it into hole 3 through the hole in lever 2.
 Adjust the needle bar frame 4 (screw 1) in accordance with the requirement.
 Check: switch on the machine and sew a stitch. Pedal max. Actuate backwards and check
needle front and rear position!
Screw 5 and nut 6 remain loosened for the next adjustment
Requirement
With the stitch length set at "5", in its front and rear point of reversal the needle should be
the same distance from the inside edges of the needle hole.
=
=
5
6
4
