Pfaff 1571 Adjustment Manual

Adjustment
23
15.04.14 Automatic presser-foot lifter
Requirement
When magnet 1 is activated, the roller presser should have a height of 12 mm!
 Move solenoid 1 ( screws 2 ) in accordance with the requirement.
 Turn the machine on and check the requirement.
 Turn the machine off.
Depending on the thickness of the material, the clearance between the roller-presser
and the feed wheel can be increased to a maximum of 12 mm by moving the sole-
noid 1 to the right.
1
2

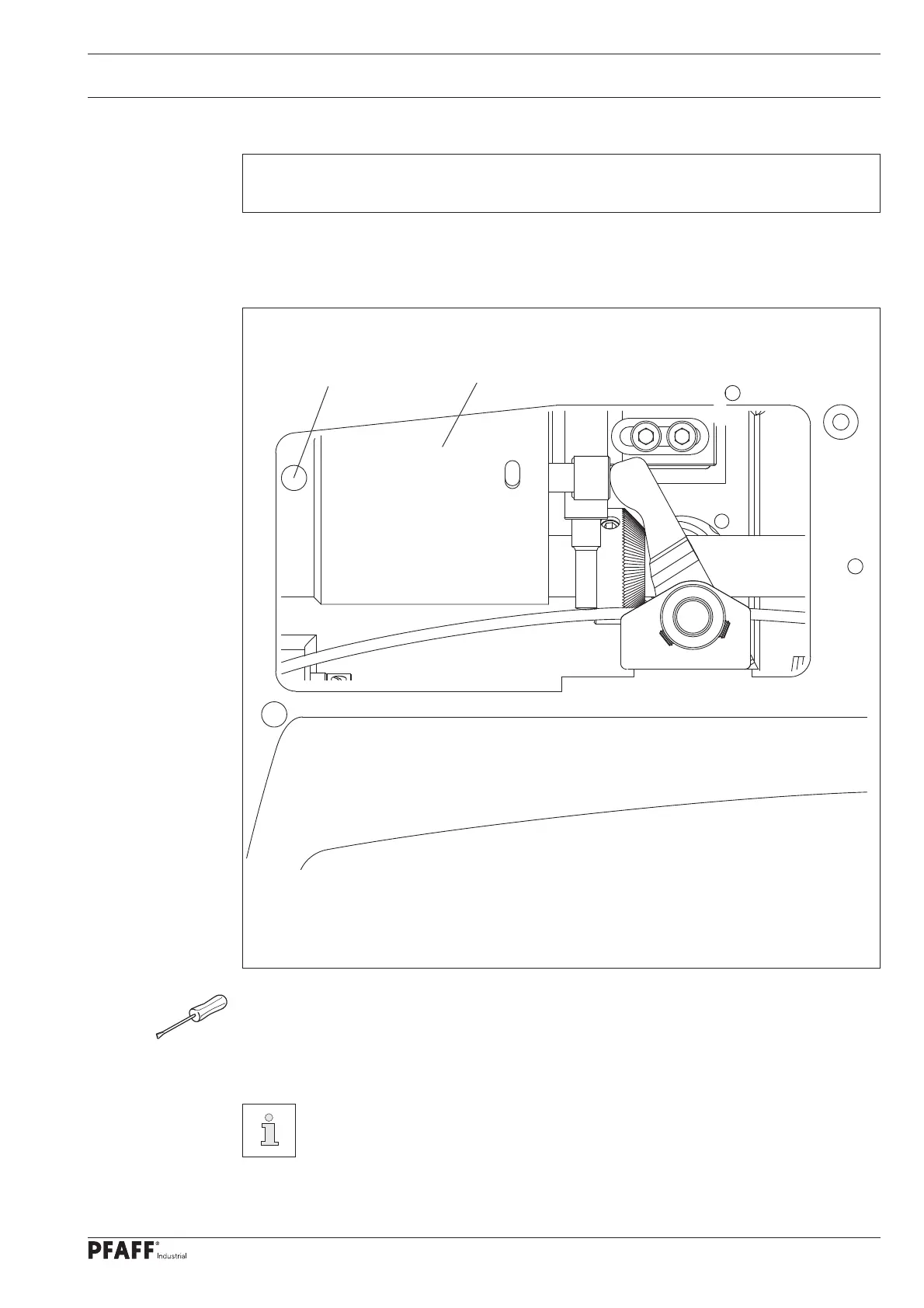

Fig. 15 - 14
75°
