Pfaff 1571 - Toothed Belt Mounting (Models 1571;1591)

Adjustment
31
15.04.21 Lubrication
Requirement
After a running time of 10 seconds a fi ne line of oil should form on a strip of paper held-
next to the hook.
 Check whether oil has been fi lled in and that there is no air in the oil lines.
 Let the machine run for 2-3 min.
While the machine is running do not place hands in the needle or hook
area!Danger of injury from moving parts!
 With the machine running hold a strip of paper on the hook and check the requirement..
 If necessary, adjust the oil fl ow on screw 1.

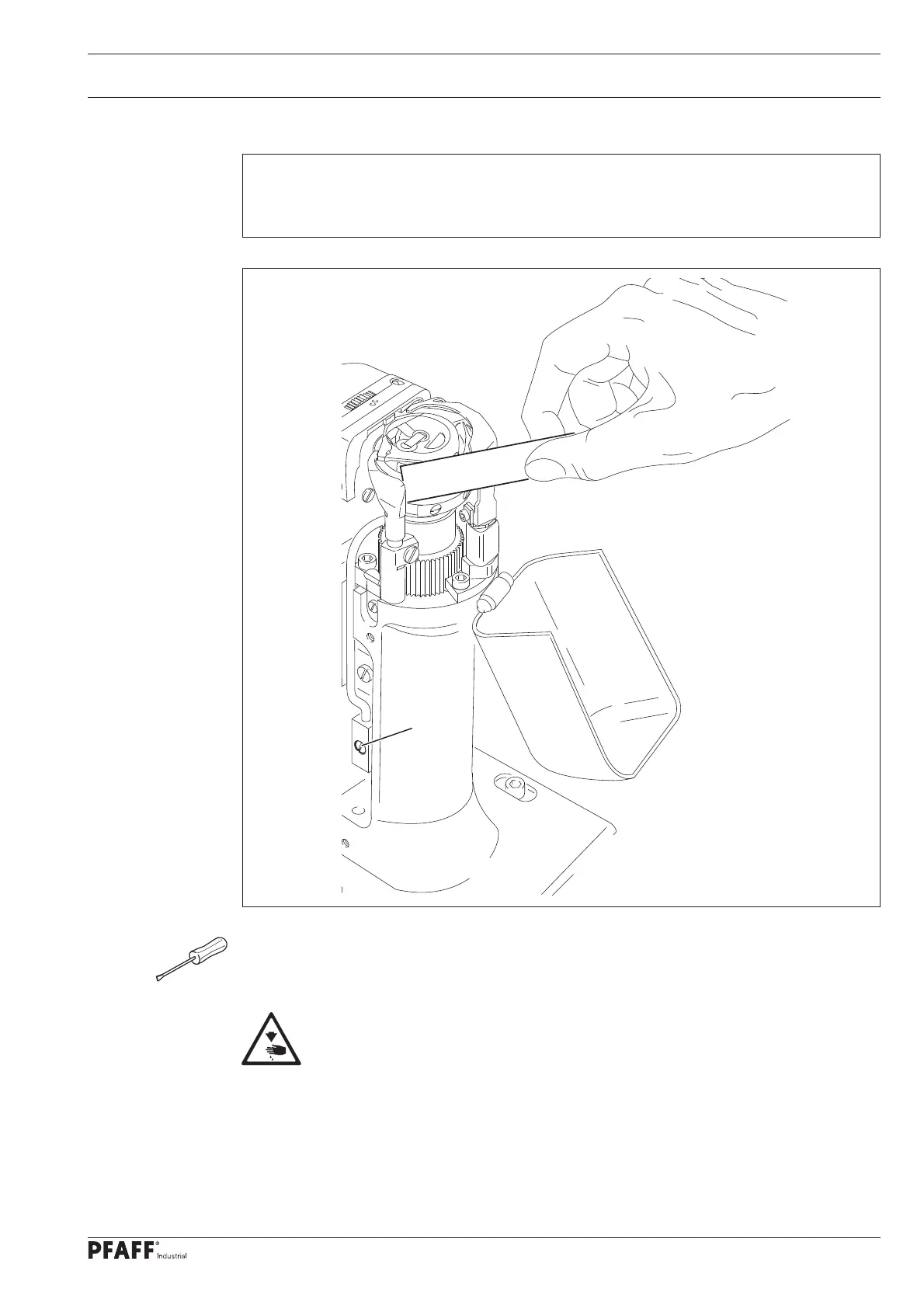

Fig. 15 - 21
1
