Adjustment
2 - 9
● Turn lifting eccentric 1 (screws 2) according to Requirement.
Make sure that there is slight play between lifting eccentric 1 and the crank
lever behind it.

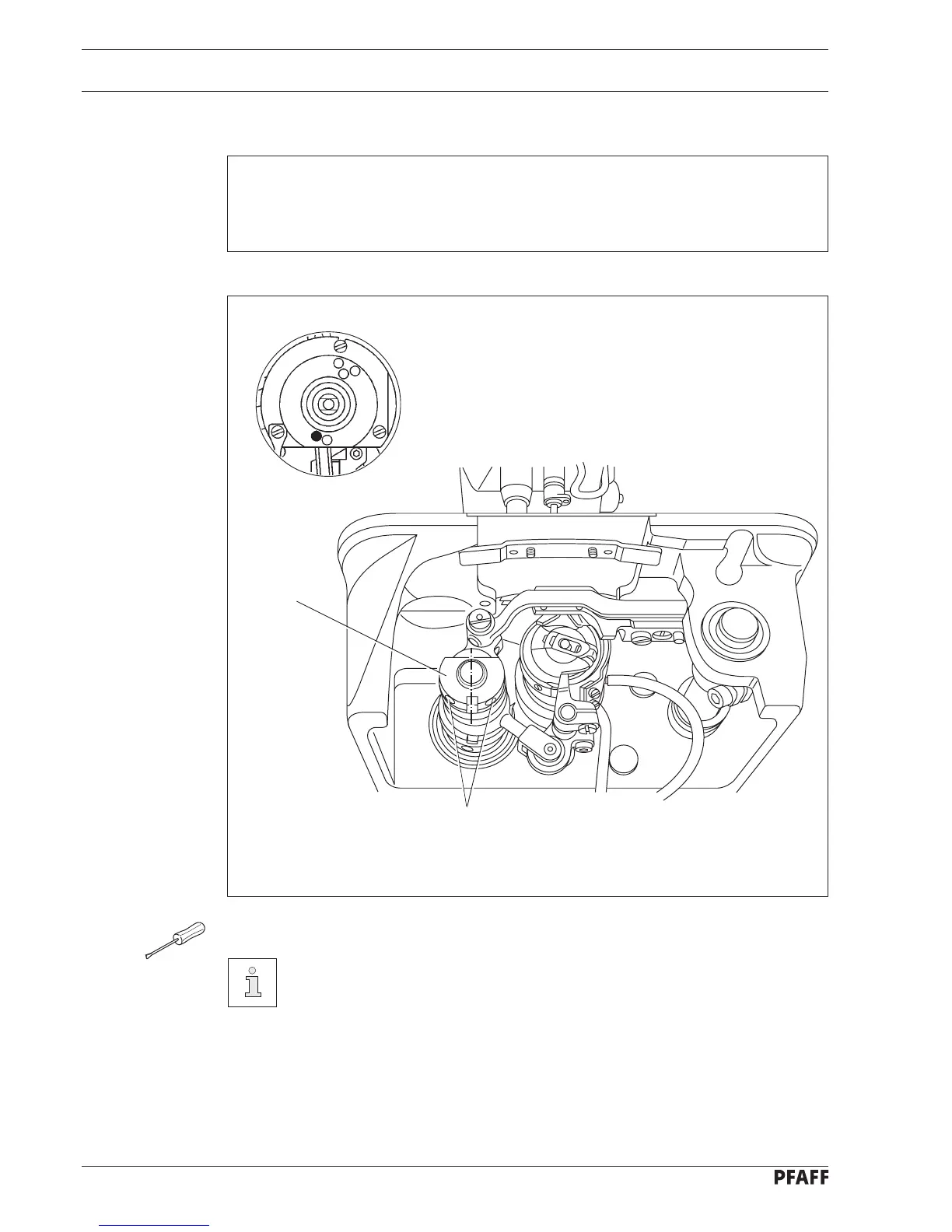

Fig. 2 - 08
2.11 Lifting motion of drop feed
Requirement
At stitch length setting "0" and with the needle bar in position 0.6 past t.d.c. (blocking hole
1) the feed dog must be at t.d.c.
The cutout in lifting eccentric 1 must face roughly vertically downwards.
1
2
1
