Adjustment
2 - 5
● Set feed regulator lever 1 in its lowest position.
● Turn bush 2 (screw 3) so that mark 4 is facing downwards and the edge of the milled
surface is at an angle of approx. 45° to the front side of the machine.
● (For the final adjustment, see Chapter 2.20 "Top feed synchronization".)
● Insert a suitable pin or allen key in hole 5 of tensioning ring 6 and hold shaft 7 with it
firmly.
● Turn shaft 7
(screw 8) according to Requirement.
2.08 Neutral position of drop feed
2.08.01 Adjustment with the gearcase closed
Requirement
At stitch length setting "O" the drop feed must not make any feeding movement when the
balance wheel is turned.

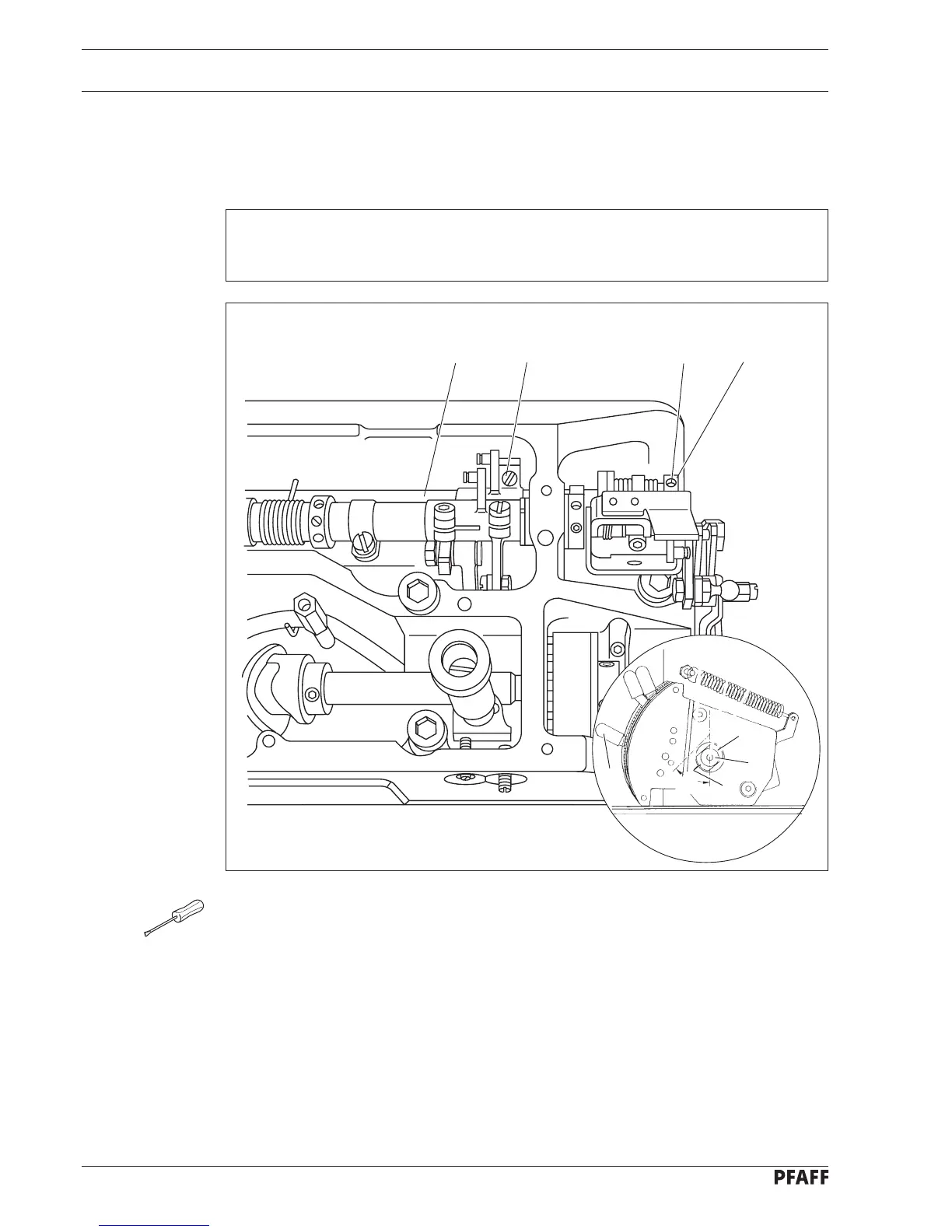

Fig. 2 - 04
56
8
7
45
°
2
3
4
1
