Pfaff 487

Adjustment
2 - 3
2.06 Preliminary adjustment of needle height
Requirement
With the needle bar at b.d.c. the underside of the needle bar must be at a distance of
approx. 16.5 mm from the needle plate.

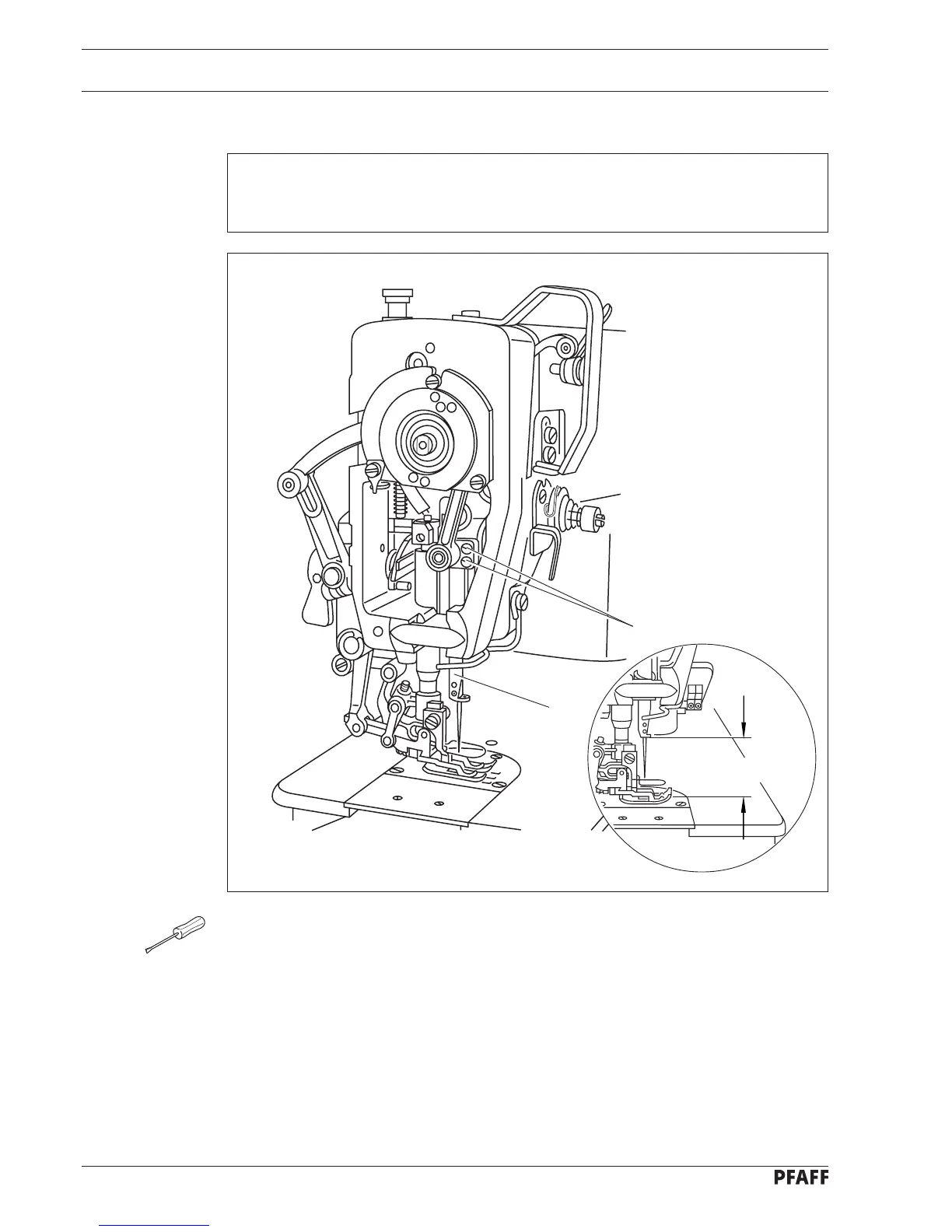

Fig. 2 - 02
1
2
● Re-position needle bar 1 (screws 2) according to Requirement.
16,5 mm
