Pfaff 487 Service Manual

2 - 4
Adjustment
● Set the needle immediately above the needle hole.
● Loosen screws 1, 2 and 3.
● Reposition needle bar frame 4 according to the Requirement both crosswise and
lengthwise of the feeding direction.
● Tighten screw 3 firmly and screw 2 just a little.
● Turn screw 1 to take up the guide pin behind it against the eye of the needle bar frame
and tighten it.
● Take out the needle.
● Loosen screw 2, turn the balance wheel a few turns (to remove any binding) and tighten
screw 2 firmly.

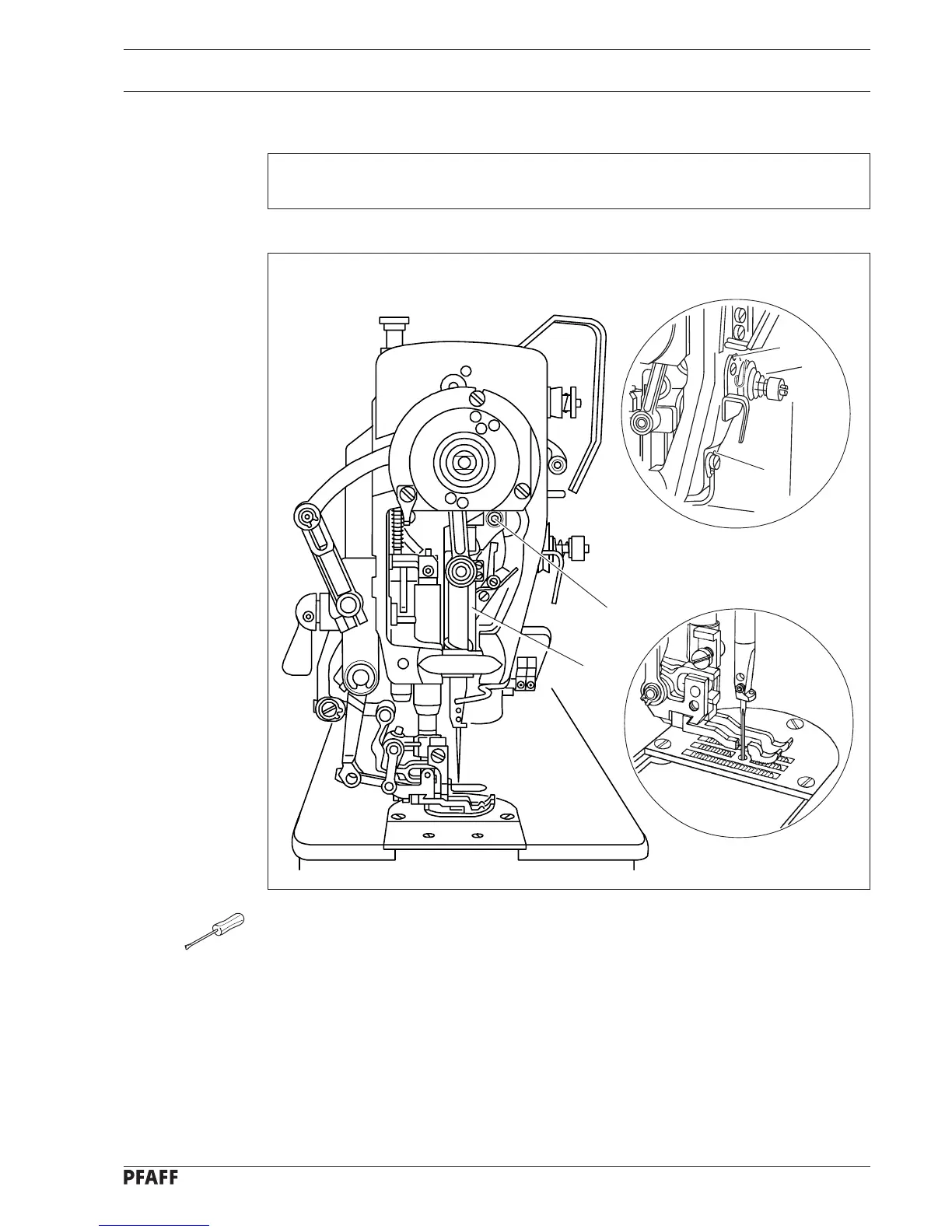

Fig. 2 - 03
2.07 Needle in needle-hole centre
Requirement
The needle must enter exactly in the centre of the needle hole.
1
4
2
3
