Adjustment
2 - 7
● Loosen screws 1 and 2.
● Make sure that reverse-feed control lever 3 is resting on stop 4, move actuating lever 5
lightly against the reverse-feed control and tighten screw 1 again.
Leave screw 2 loose until the top-feed neutral position is adjusted
(Chapter 2.15).
2.09 Actuating lever under the reverse-feed control
Requirement
At the longest stitch length setting, reverse-feed control lever 3 must have a slight play
(approx. 0.3 mm)
when pressed lightly.

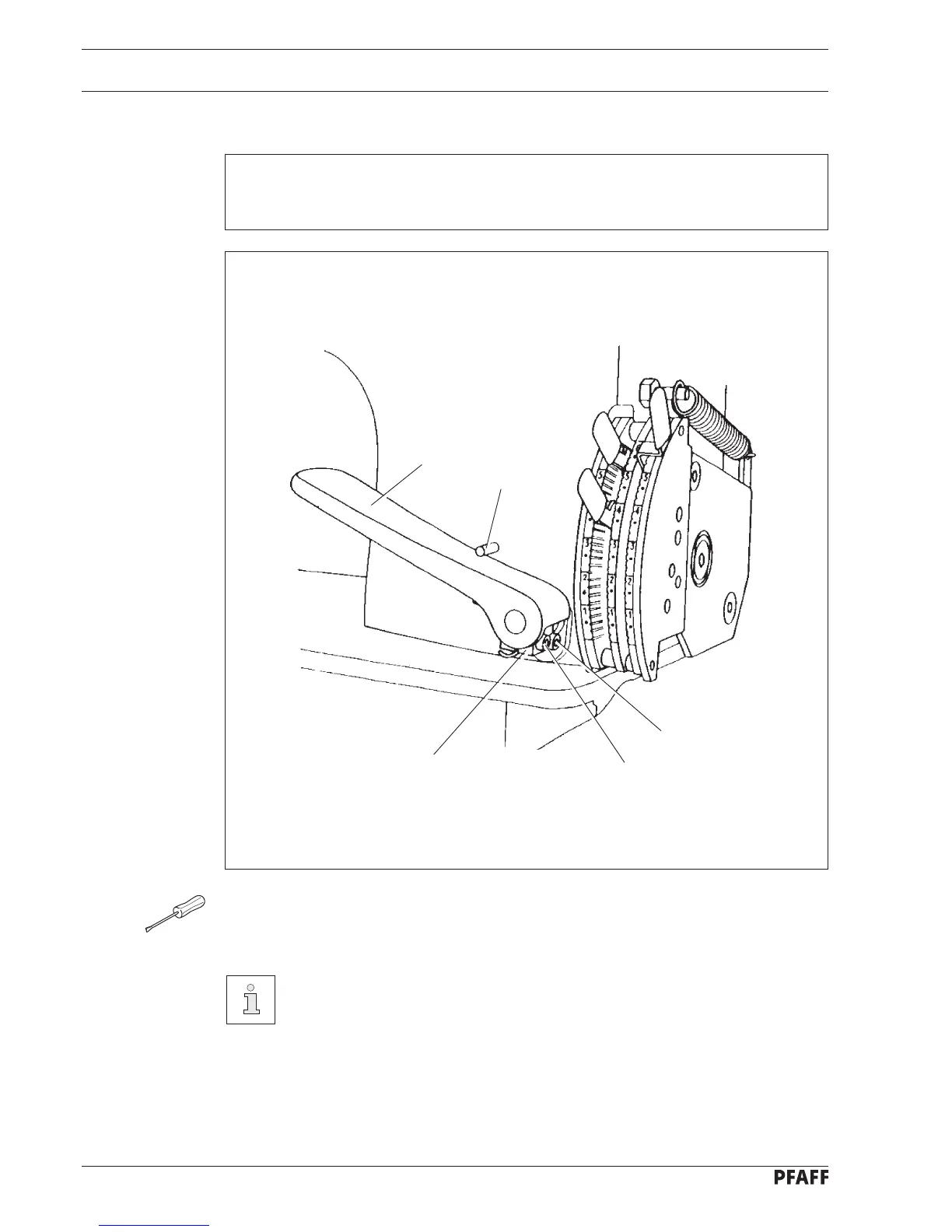

Fig. 2 - 06
1
2
3
5
4
