Pfaff 487

Adjustment
2 - 17
● Turn eccentric pin 1 (screw 2) according to Requirement.
Fig. 2 - 16
2.18 Top feed lifting motion
Requirement

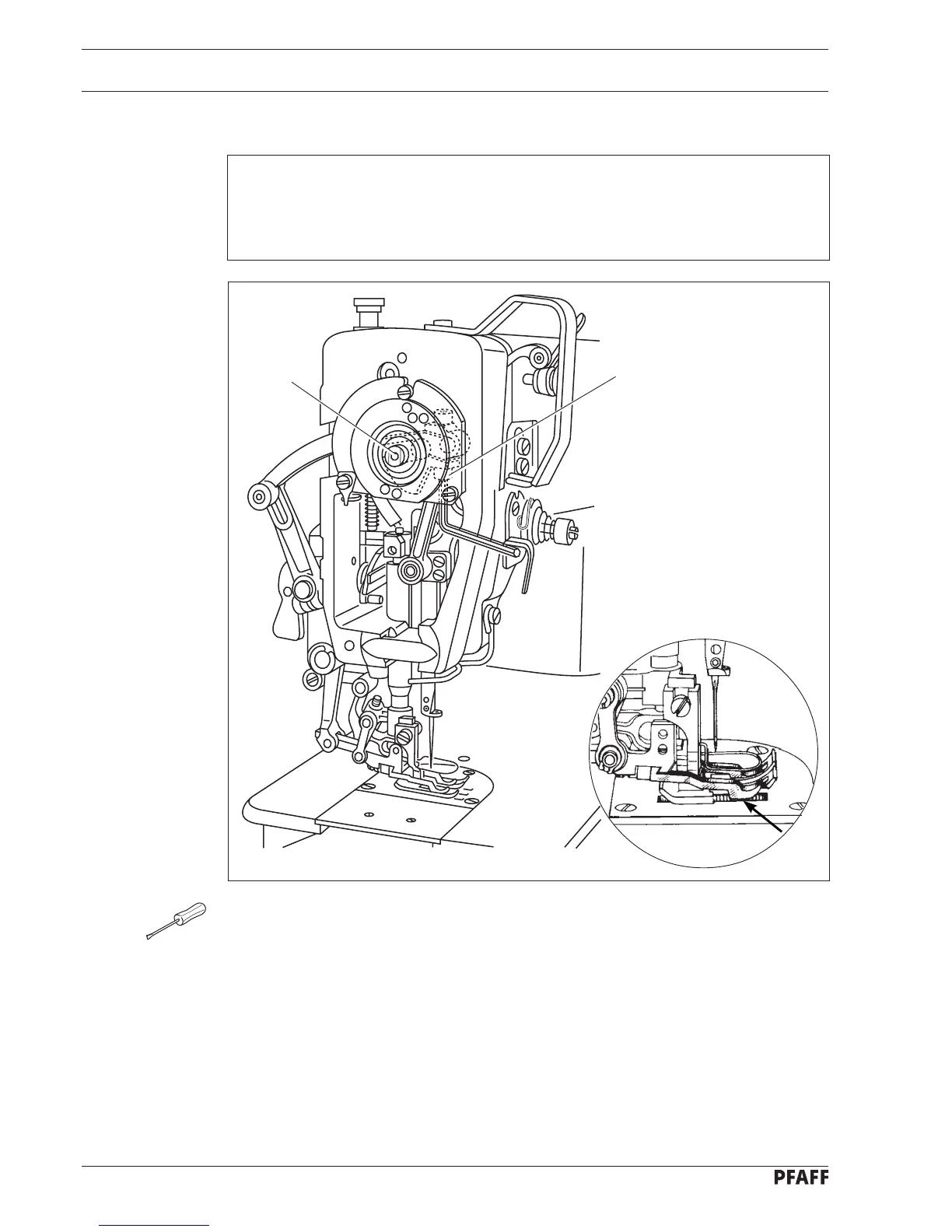

With the stitch length set at "2" (on version "N" at stitch length "5") the lifting presser must
rest on the bottom feed dog (see arrow) when the rising bottom feed dog has reached the
upper surface of the needle plate.
2
1
