Adjustment
1
2
2.33 Position of vibrating presser in relation to lifting presser
Requirement
When the presser foot is raised with the presser bar lifter and the take-up lever is in its
highest position, the teeth of vibrating presser 3 must not be protrude below the shoe of
lifting presser 4.
● Turn eccentric sleeve 1 (screw 2) according to Requirement
..
..
.

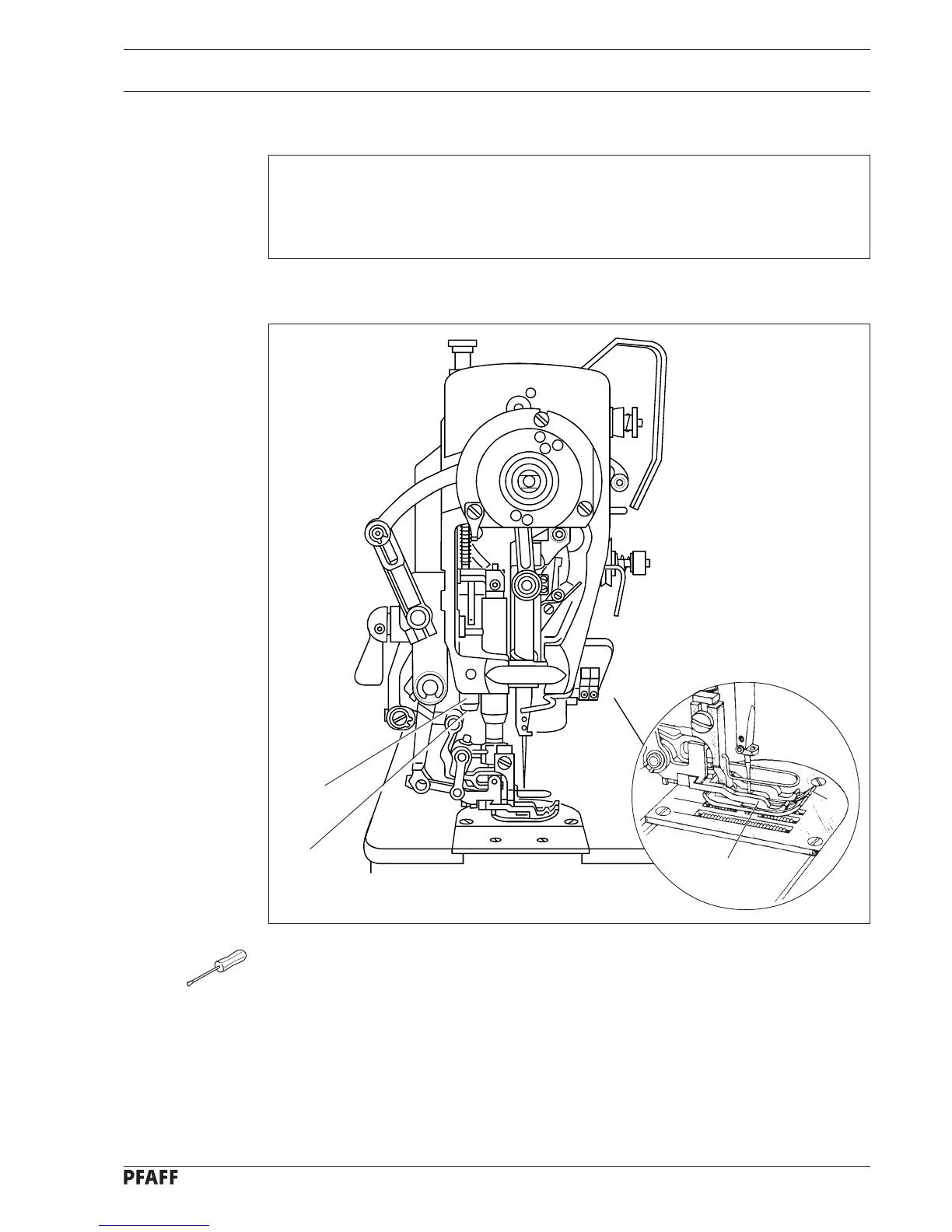

Fig. 2 - 31
3
4
