2.30 Knee lever resting position
Requirement
When in its resting position, knee lever linkage 2 must be roughly at right angles to the
bedplate.
● Raise the presser foot using the presser bar lifter
● Fit knee-lever coupling 1 on the knee-lever shaft and snap linkage 2 into knee lever
coupling 1.
● Turn stop screw 3 (nut 4) according to Requirement.

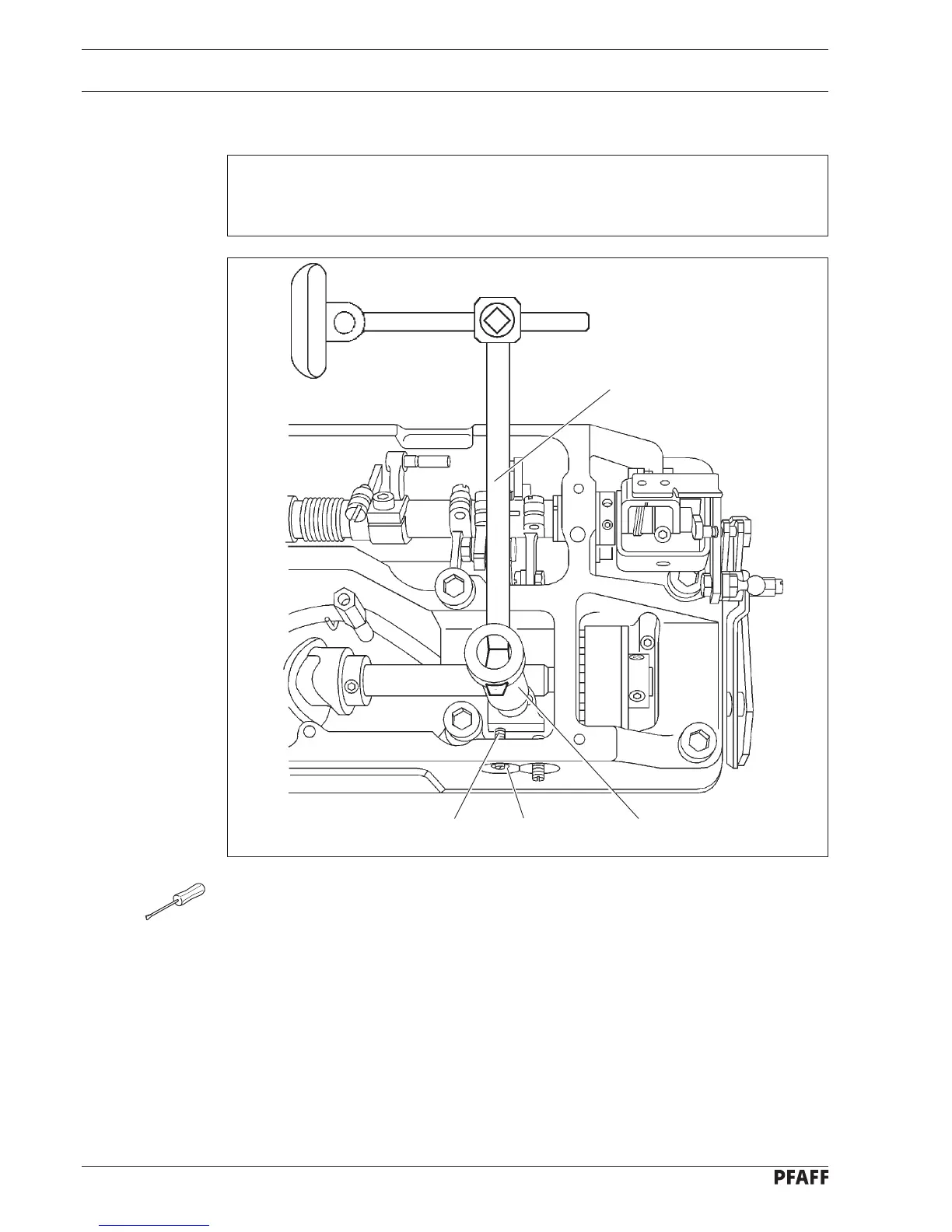

Fig. 2 - 28
13 4
2
