Output Output No.

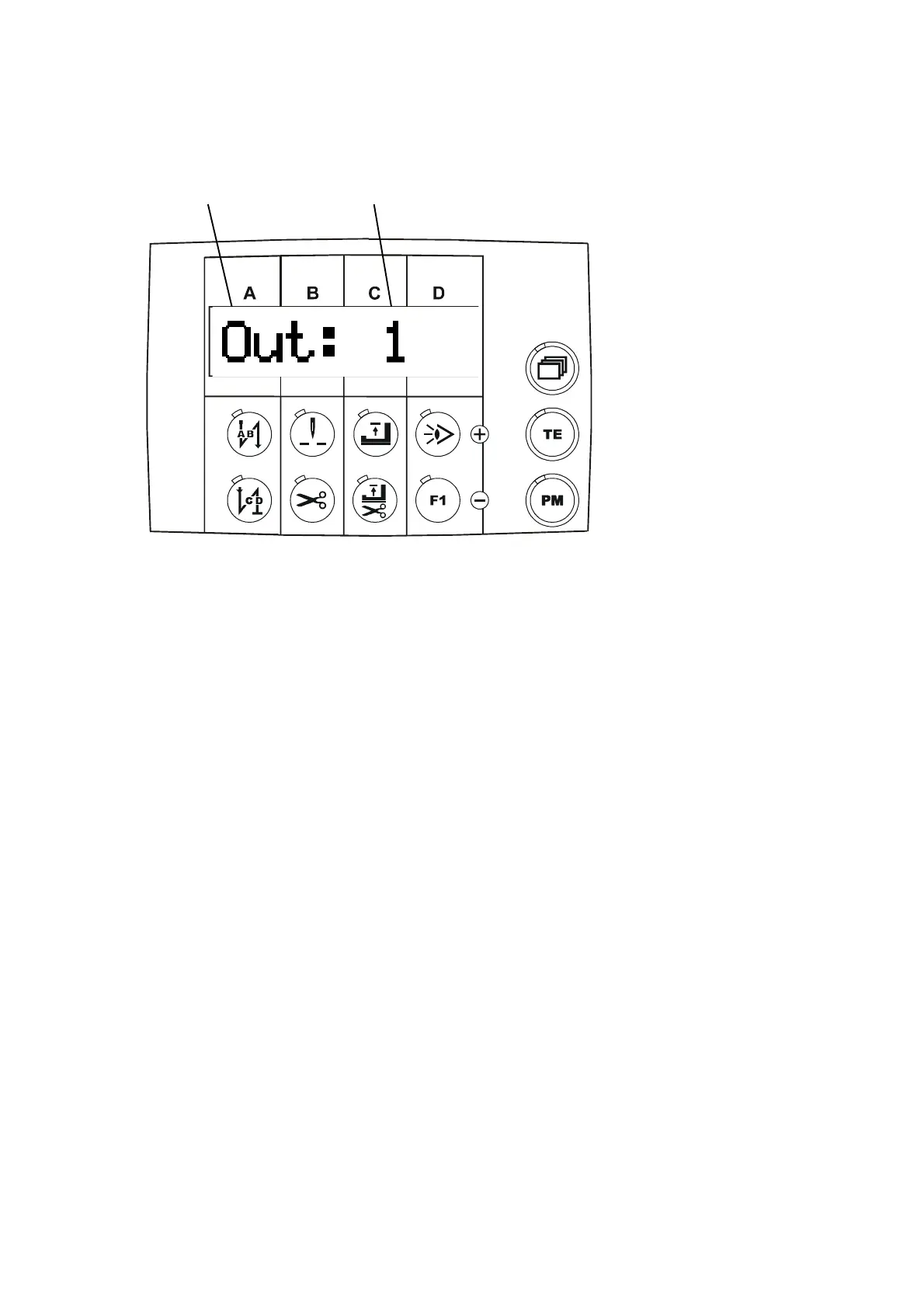

Fig. 10.3
Outputs:
The output is selected using keys C+ / C-
The output displayed is switched on using key D+
The output displayed is switched off using key D- (or by changing menu)
Output 1: Presser foot is cycled
Output 2: Feed reverse is cycled
Output 3:Trimming magnetically cycled
P. <438 > = 0, (<438> = 1 = drive runs)
Output 4: Thread tension release (in hardware test cycled constantly at 50 %)
Output 5:Pneumatic trimming
P. <795 > = 0, (<795> = 1 = LED Key pad)
Output 6:Wiper
= P. <422 > = 1, thread clamp <422> = 2 , drive runs <422> = 3 =, lift up <422> = 4 )
Note: Cycled outputs are cycled in accordance with
their parameter values!
The output mode is selected using keys A+ / A- (Fig. 10.3)
p4xpd-2-en
10.5 08-08-29
