p4xpd-2-en 10.4 08-08-29
10.6 Hardware test
The hardware test is a test program that makes it possible with the aid of the PicoTop control panel
to check different drive components (of the control unit) and the machine installation.
Switching on the "Hardware test" test program
Procedure:
Switch on programming level "c".
Call up parameter <798> and use keys D+ / D- to enter "11", then call up
parameter <797> and use keys D+ / D- to enter "1".

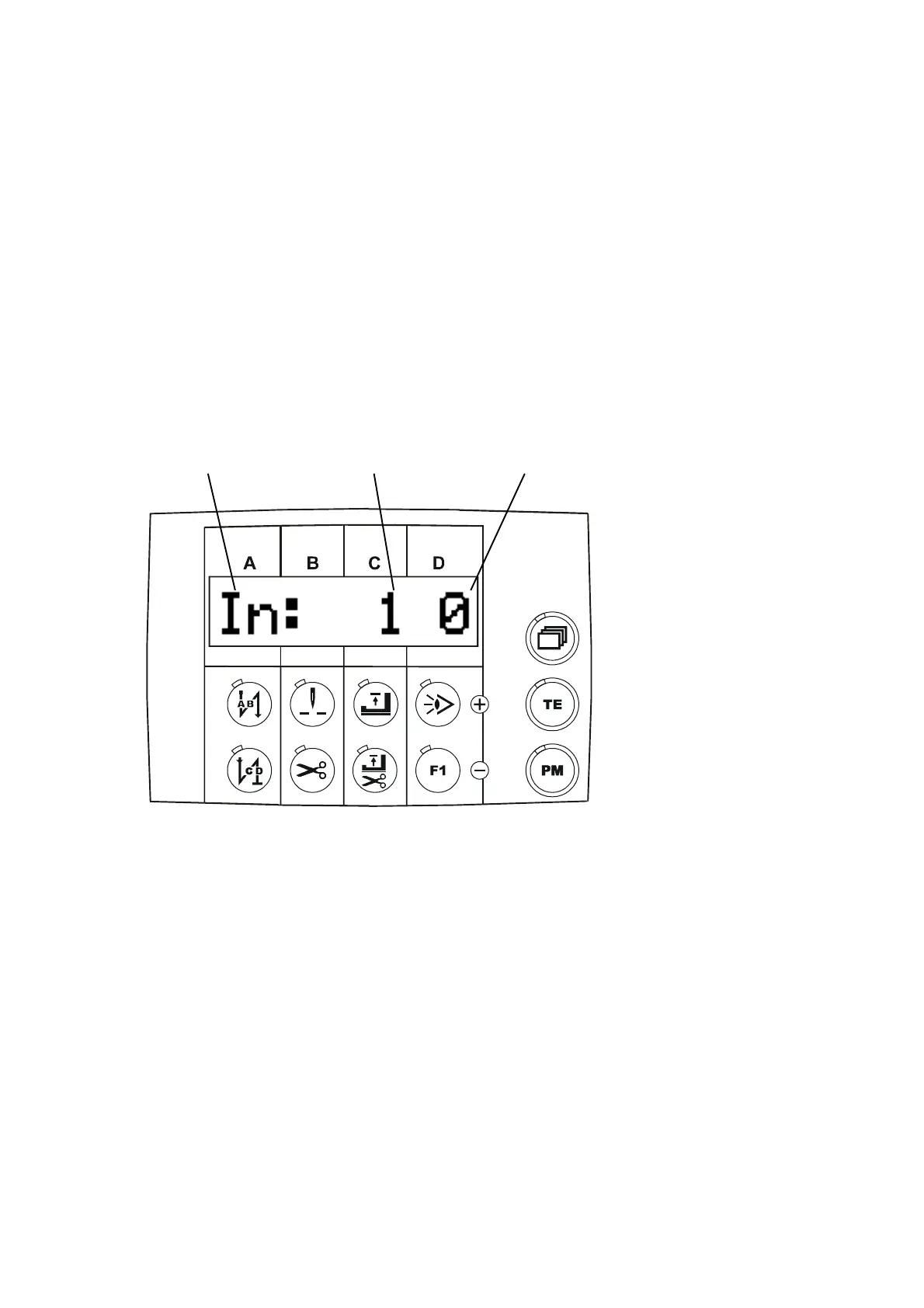

Response: The first test block: inputs "In: 1 0" is shown on the display! (Fig. 10.2)
Input Input No.
Input status
Fig. 10.2
Inputs:
The input is selected using keys C+ / C-
Input 1: E1 (TUM manual)
Input 2: E2 (different functions, select with parameter <446>)
Input 3: E3 (different functions, select with parameter <748>)
Input 4: E4 (presser foot knee switch)
Input 5: E5 (safety device)
Input LB: Light barrier
