7.2Control unit P4xPD

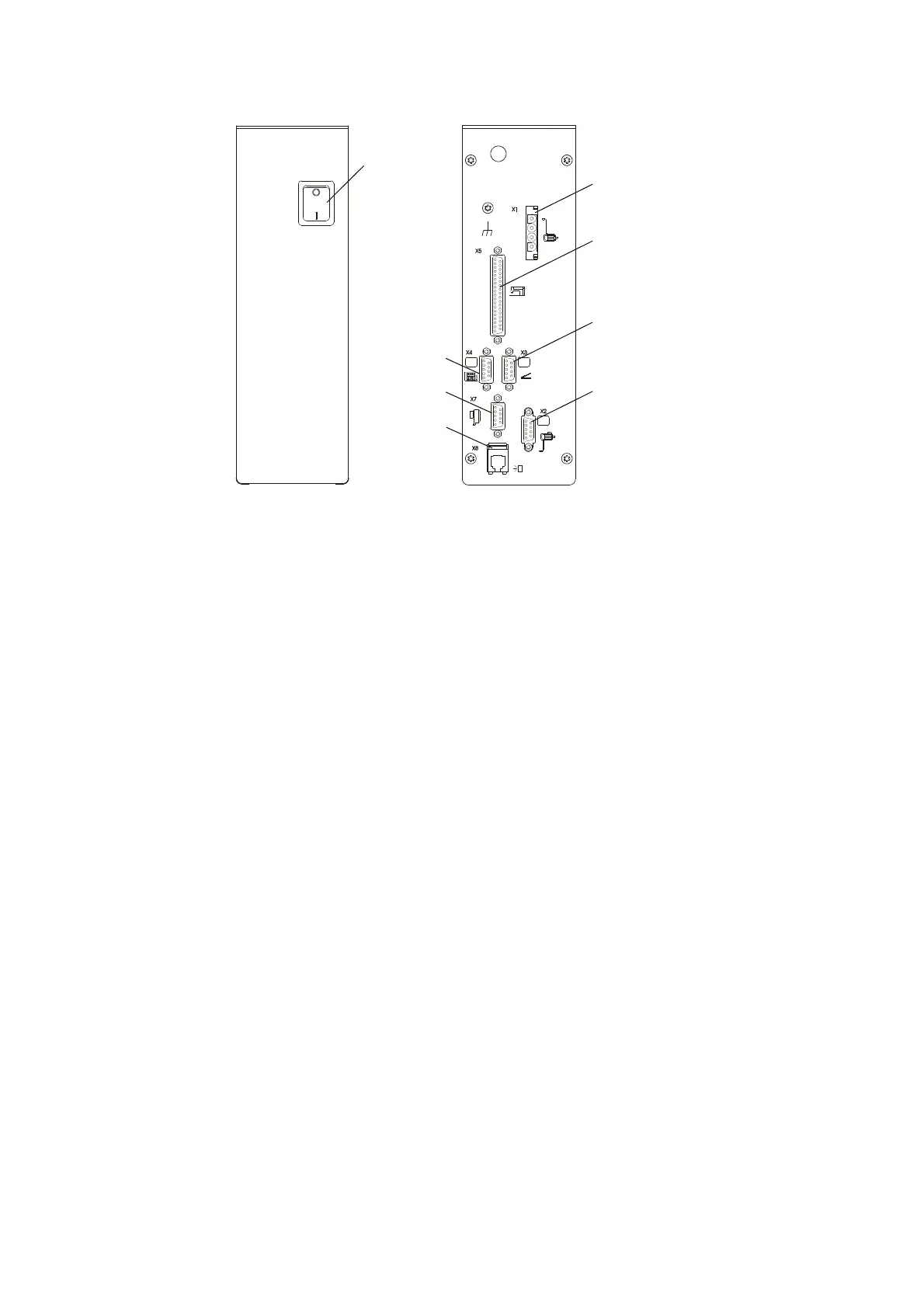

Fig. 7.5 Fig. 7.6
The control system casing is suspended from below and screwed to the table top with four screws
which are included with delivery.
The mains connection is single-phase via the three-conductor cable exiting from the back by means of
a locally used plug with earthing contact.
The control unit has peripheral function controls
on the front (Fig. 7.5):
external mains switch
X0 mains switch
on the back (Fig. 7.6):
the connection sockets and plugs
X1 four-contact socket for connecting the stator windings of the motor
X2 nine-contact D-sub socket for connecting the incremental encoder of the motor
X3 nine-contact D-sub connector for connecting the speed control unit SCU2
X4 nine-contact D-sub connector for connecting the PicoTop control panel
X5 37-contact D-sub socket for connecting process controls
(keys, switches, magnets, solenoid valves) to the machine
X7 optional external synchroniser
X8 western socket for connecting a light barrier
