8.4 Sewing with a sewing program based on a program example:
3 programs that are linked to each other with the following functions
Program 1, with constant speed of 1000 revolutions, 3 seam sections, 5 stitches per seam section
and linked with program 2,
Program 2, with constant speed of 1500 revolutions, 5 seam sections, 7 stitches per seam section
and linked with program 3,
Program 3, with constant speed of 1800 revolutions, 4 seam sections, 10 stitches per seam section
and linked with program 1,
Thread trimming to be carried out at the end of the third seam section in the third program,
then it should start again with program 1 and seam section 1.
Note: The following functions can be programmed for every seam section:
front and end backtack, needle position, thread trimming
and presser foot lift!
8.4.1 Program 1:
Entering the number of stitches you want for seam section 1
1.1 To enter the desired number of stitches for seam section 1 in "Program 1"
press the PM key, (LED on) and press the TE key, (LED on)

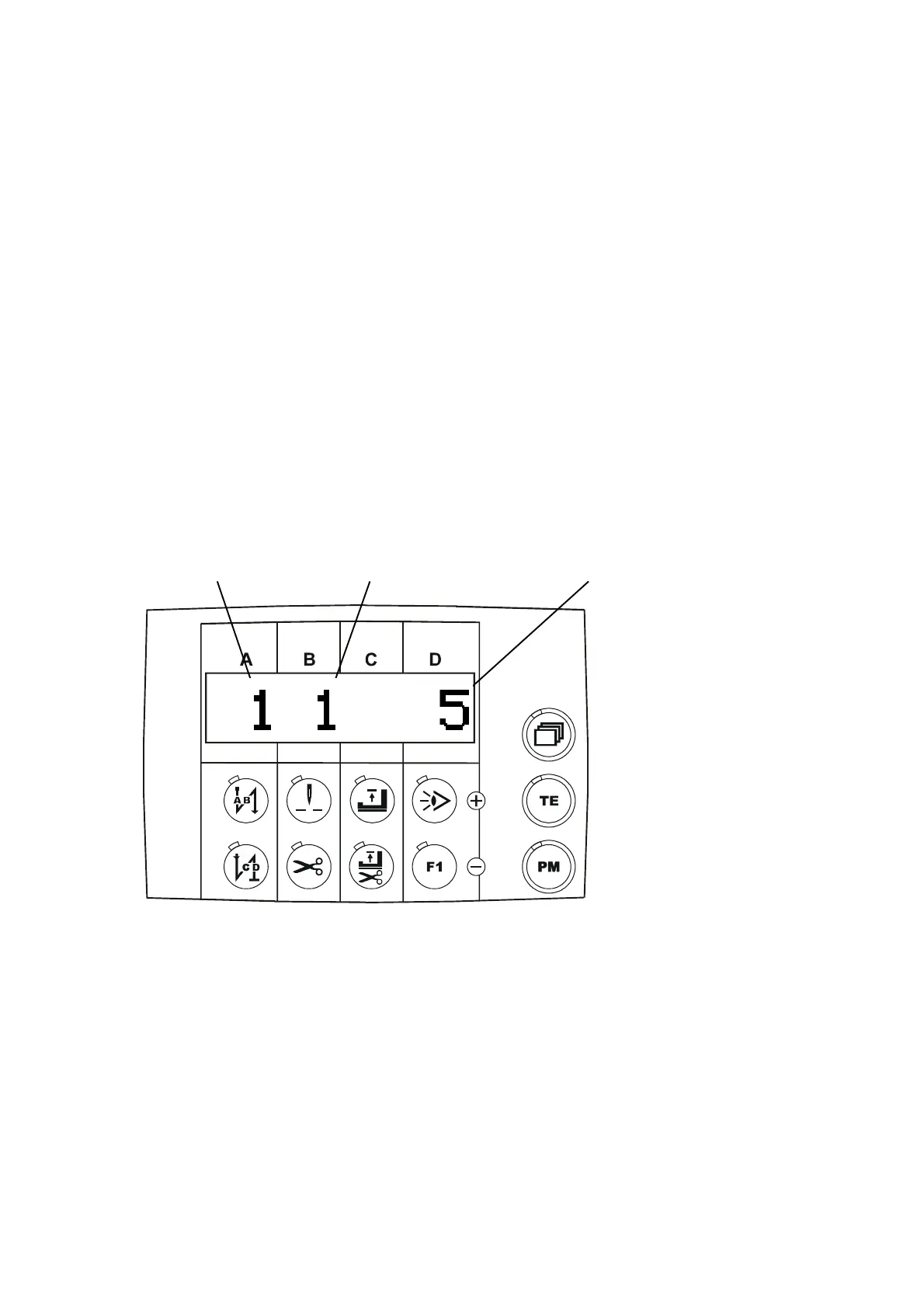

1.2 Press the paging key until the display Fig. 8.1 appears
1.3Set "Program number 1" using keys A+ / A-, (TE on)
1.4Set "Seam section number 1" using keys B+ / B-, (TE on)
1.5 Use the D+ / D- keys to set the desired number of stitches for seam section 1 e.g. "5 stitches"
Note:
The other desired seam sections 2, 3 etc. with the assigned number of stitches per seam
segment can be entered as described under 1.4 and 1.5.
To enter other functions, continue working in programming mode.
To finish your entry
press the PM key, (LED off) and press the TE key, (LED off)
p4xpd-2-en
8.5 08-08-29
Program number
Number of stitches (1-250)
for seam section 1
Seam section number
Fig. 8.1
