p4xpd-2-en 8.1 08-08-29
8. Application
The PicoDrive drive system can only be operated with an external PicoTop control panel!
Switching on
The on/off switch (mains switch) S1 is located on the front of the control unit.
When switched on, the S1 switch lights up if there is mains voltage.
8.1 Displays on the PicoTop control panel

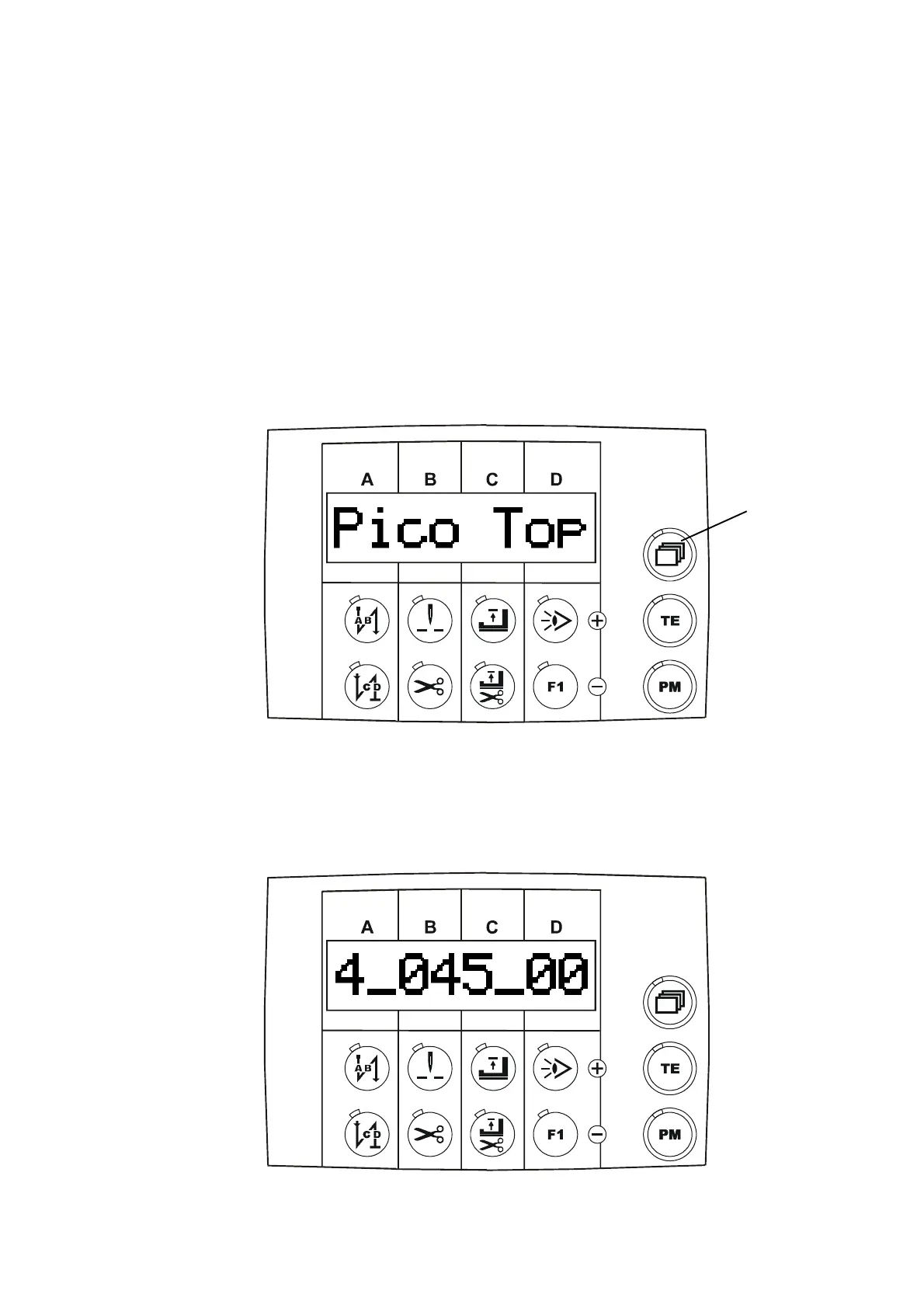

After switching on the control unit, the control field name (Fig. 8.1) is displayed for approx. 3 sec.
If, when switching on, the T9 key (paging) is simultaneously pressed, the software number
(Fig. 8.2) is displayed. The display remains until any key is pressed.
Fig. 8.1
Fig. 8.2
Paging key
To Next Page
