Position Relative position of the motor in relation to the logical zero marks
Fig. 10.5
Synchroniser in the motor:

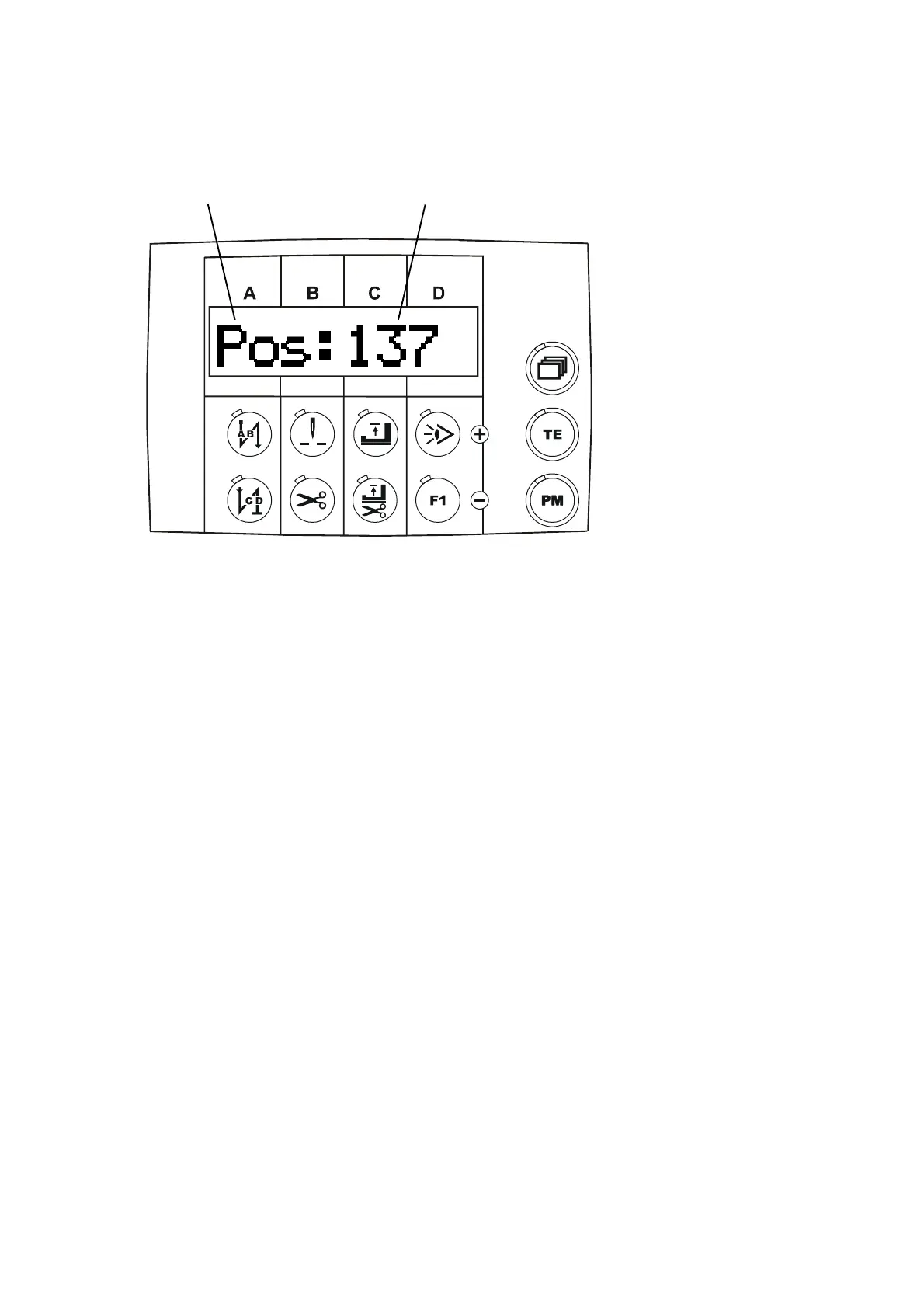

The synchroniser test mode is selected using keys A+ / A- (Fig. 10.5)
By turning the handwheel, the relative position of the motor in relation to the logical zero marks is shown on the
display.
This test is used to check needle position 0 (reference position of the needle bar).
See parameter <700>
