5.2 Cleaning the cooling unit - Unit cover removal
Item
Designation
Item
Designation
Item
Designation
1
Fastening screws
2
Tilting angle 20°
3
Display or operating unit
4
Bottom plate slot
5
Unit cover
Requirement
- The cooling unit is de-energized
Procedure
 Remove the fastening screws (1).
 Tilt the unit cover (5) forward 20° (2).
 Disconnect the earthing cable and connecting cables from the display or operating unit (inside) (3).
 Raise the unit cover about 15 mm and pull it out of the slots in the bottom plate (4).
 The unit cover is removed.

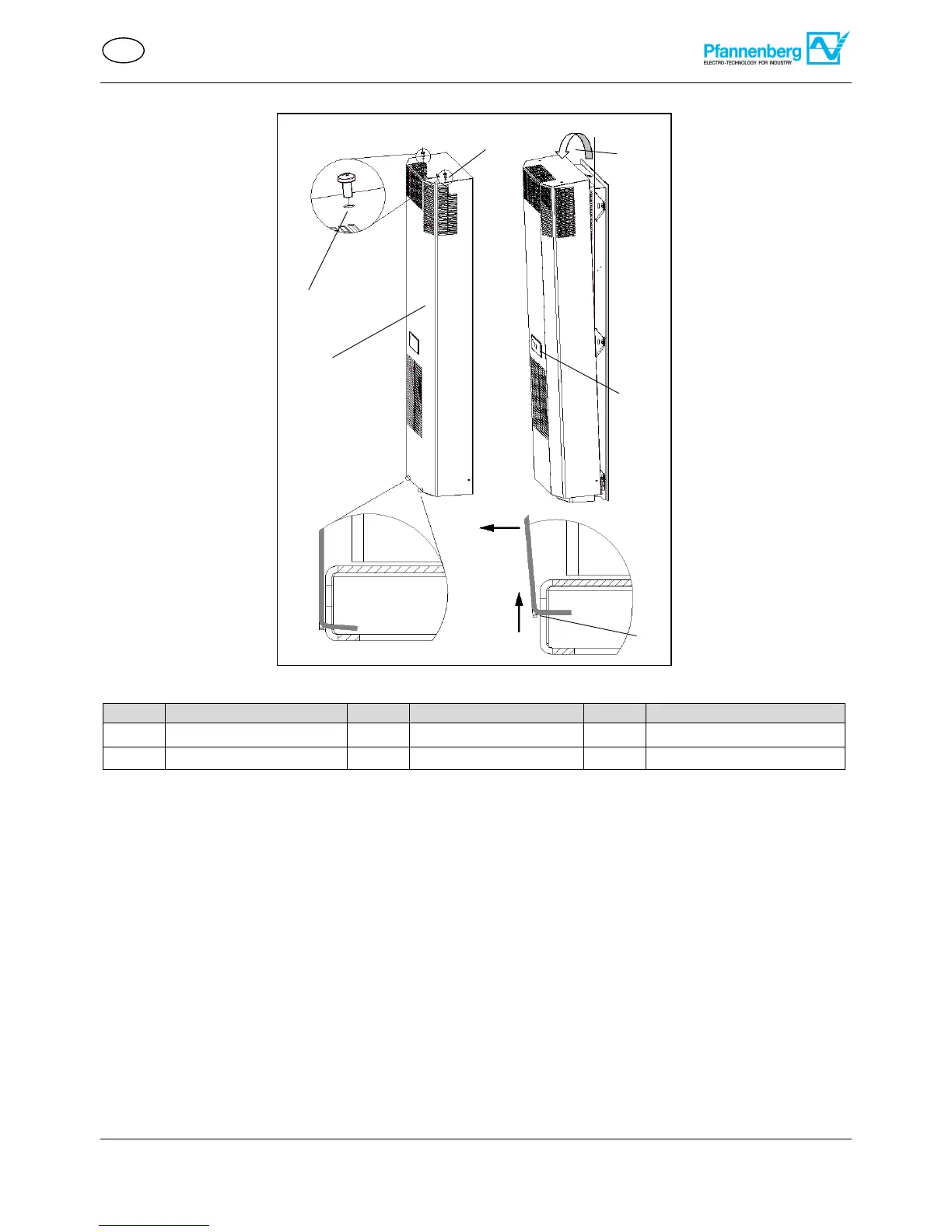

Figure 20 – Unit cover removal
