3.4.3 DTS cooling unit assembly (side attachment)
Item
Designation
Item
Designation
1
Holes
2
Device contour
3
Cut-out
Make cut-out for the DTS cooling unit
Requirements
- All general requirements have been fulfilled; see General assembly requirements
- The unit is de-energized.
Required tools and material
- Saw
- Use a switch cabinet cutter, if applicable
- Protective covers
Procedure
 Use a protective cover to protect the switch cabinet from chips.
 Provide the switch cabinet with cut-out (3) and holes (1). For the prescribed dimensions, refer to the figure
exterior view of the switch cabinet.
 Deburr the cut edges.
 Remove chips and assembly waste from the switch cabinet.
 Cut-out and holes have been made.

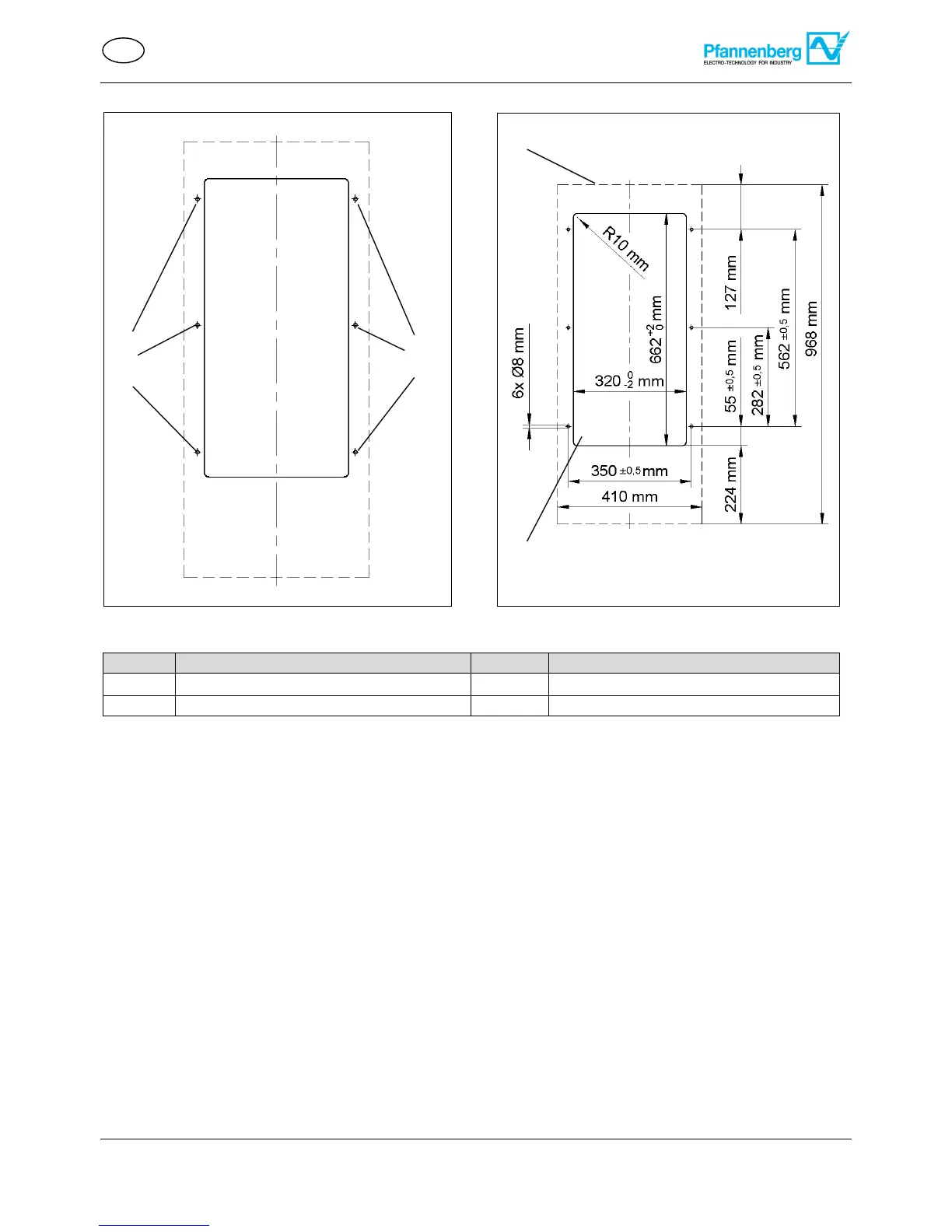

Figure 9 - Switch cabinet exterior view
Holes for DTS cooling unit
Figure 10 - Switch cabinet exterior view
Cut-out for DTS cooling unit
1
1
3
2
