2.4 Functional description
2.4.1 Air flow functional principle
Item
Designation
Item
Designation
1
Ambient air outlet
2
Warm air inlet
3
Ambient air inlet
4
Cold air outlet
5
Switch cabinet
6
DTI unit cover
7
DTS unit cover
 The upper part of the figures – Air flow principle front view – shows the DTI cooling unit and the lower part
shows a DTS cooling unit.
CAUTION
Danger due to the release of very warm air
The air outlet can become very warm depending on the ambient temperature.
 Keep body parts away from the air outlet.
 For the ambient temperature and air outlet ratio, see Technical data.

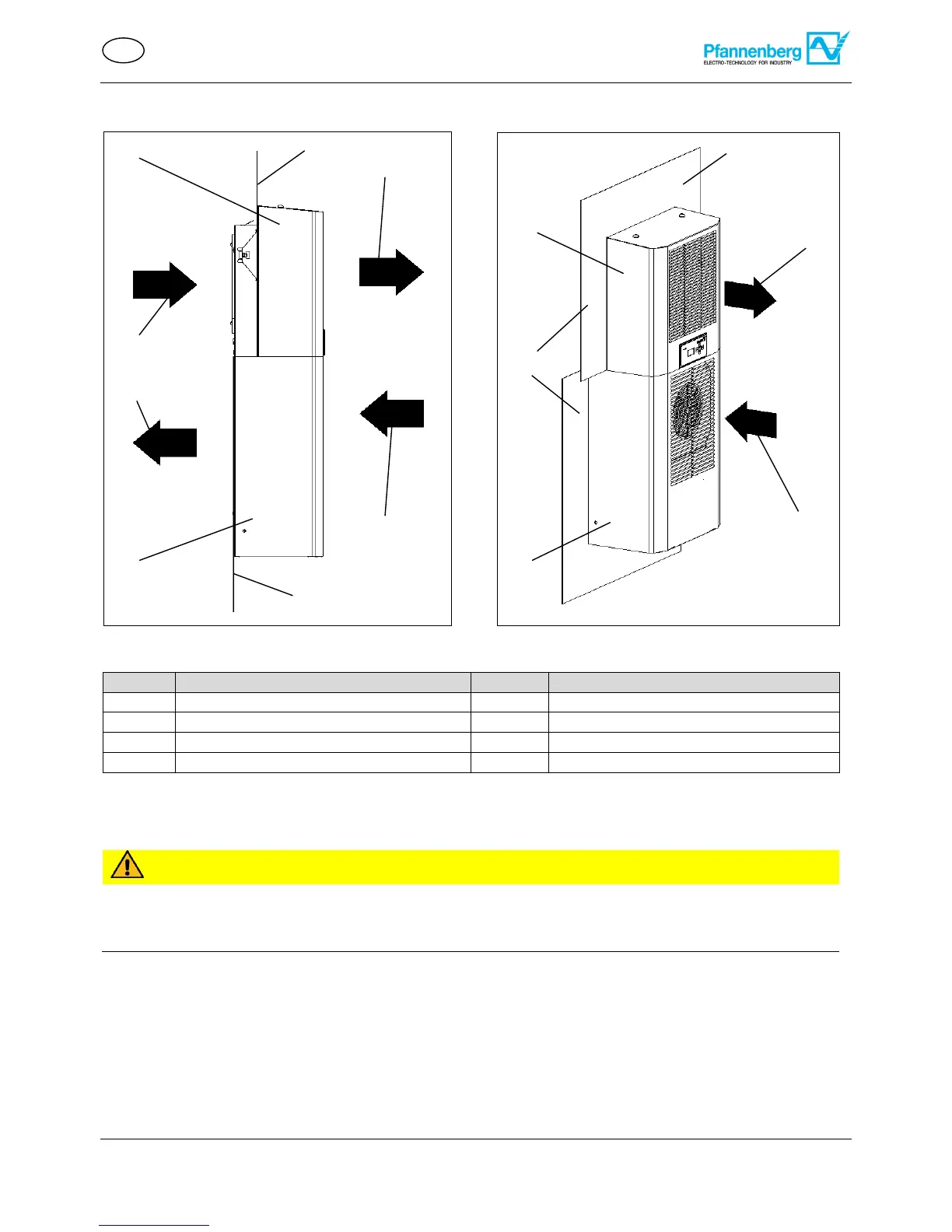

Figure 1 - DTS/DTI switch cabinet air flow principle
front view
Figure 2 - DTS/DTI switch cabinet air flow principle
side view
7
1
1
2
3
3
4
5
6
6
5
5
7
7
5
