3.5.5 Adapting the upstream fuse /transformer options
 Only cooling units with the rated operating voltage 400V / 460V can be optionally connected to a different mains
voltage.
 Reconnection takes place via the supply of the primary side of the transformer.
 The upstream fuse must match the changed mains voltage; see Adapting the upstream fuse.
 The specifications for the factory settings of the transformer are
provided on the yellow connection diagram (1) on the rear side of the
unit.
 UL-conformity with the following fuses:
Category "ClassCC", slow-burning.
Transformer - Option
Pre-fuse (Min. 480 V)
400 V
T1/ 1 [0] – T 1/ 2 [400]
Max. 4 A
440 V
T1/ 1 [0] – T 1/ 3 [440]
Max. 4 A
460 V
T1/ 1 [0] – T 1/ 4 [460]
Max. 4 A
3.5.6 Collective fault signal
 Two connections are provided for connection of the collective fault signal. They are marked with the item
designation SK; see Electrical connection.
 The fault signaling contact is potential-free.
 Ensure that the contact is loaded with a maximum of 230V, 1 A.

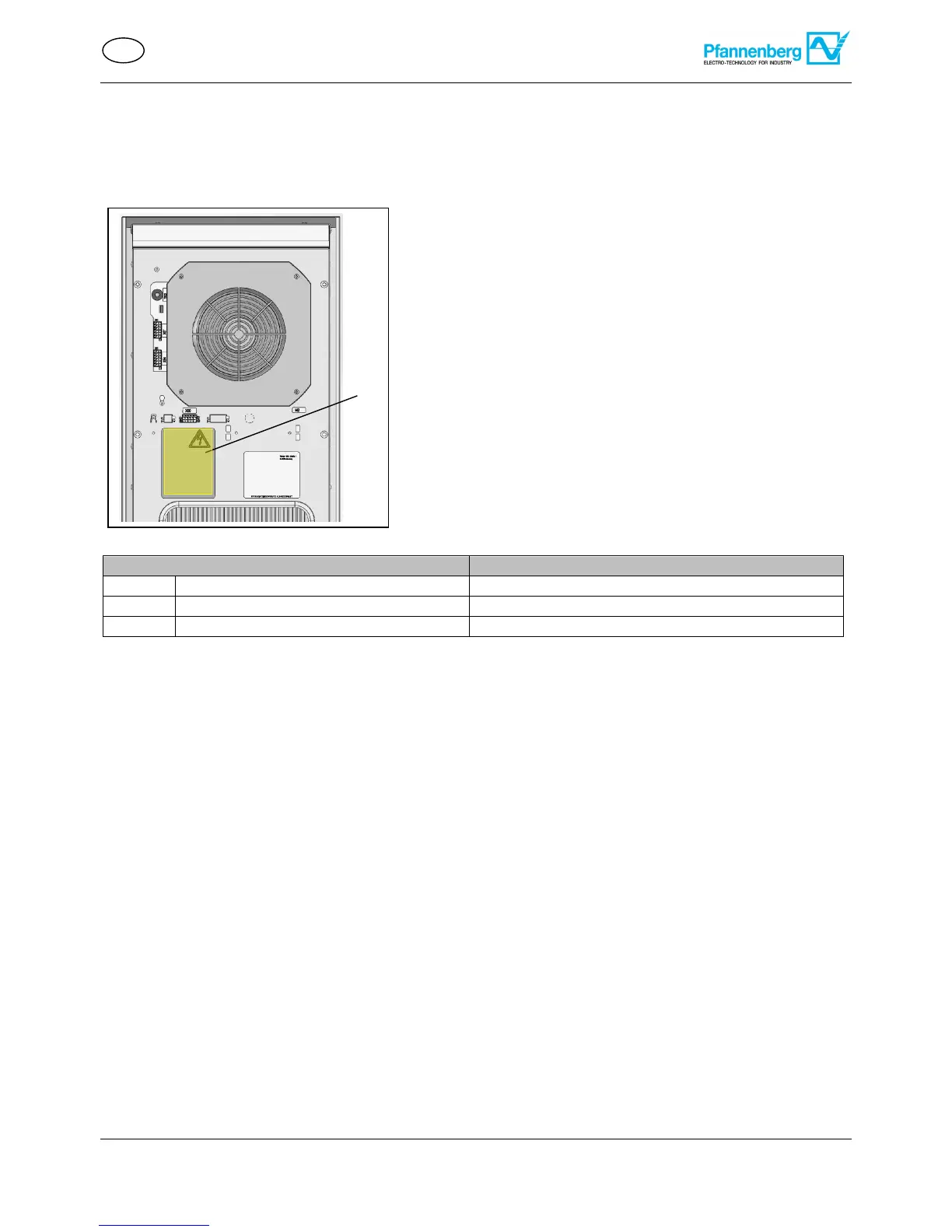

Figure 16 - Transformer options
1
