Pfisterer MV-CONNEX 3 - Installation Accessories; Tools Required for Installation; Recommended Tools and Accessories

12 www.psterer.com
Insulation removal pliers
Replacement blades
Peeling tools and outer
jacket cutter - set
XLPE - area
15 - 49 mm
Assembly socket
Size 3
For longitudinal and radial
cutting of the insulation to
expose the conductor
Ø 15 – 45 mm.
For removal of the outer
jacket, bonded semi-
conductive layer and to
chamfer the insulation.
For pre-assembly of CONNEX
cable terminal heads (e.g.
in the workshop).
305 051 051
305 063 063
827 951 001
827 174 004
Mounting Accessories
5 Installation Accessories

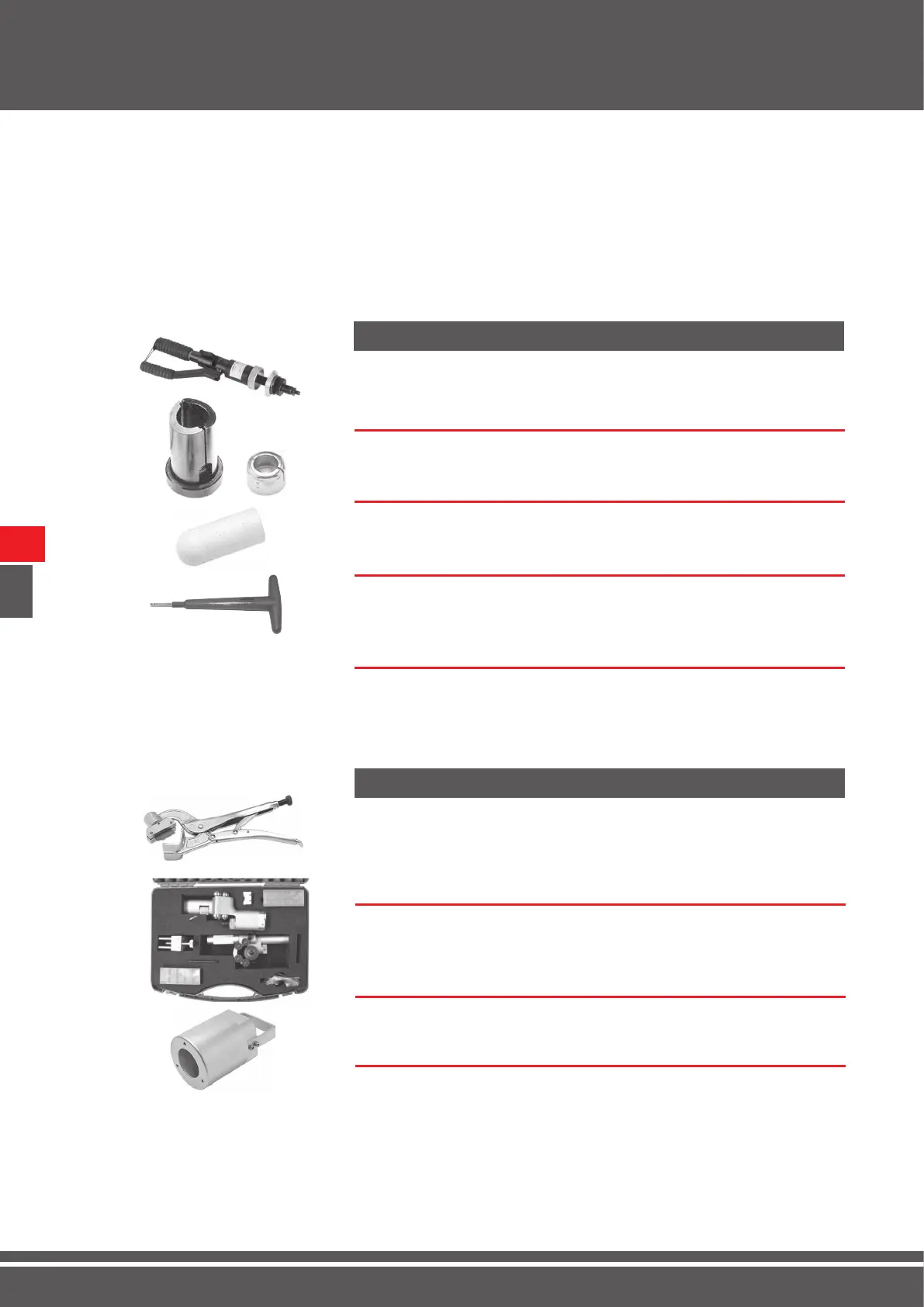

5.1 Tools required
Special tools are required for assembly and disassembly.
Name Item No. Description
Hydraulic
compression tool
Compression head
Size 3
Impact head
Size 3
T-handle screwdriver
SW 6
5.2 Recommended tools and accessories
Name Item No. Description
V
For axially pressing or
pulling of the
contact ring.
Including pull out in-
sert for hydraulic hand-
held crimping pliers.
For pre-assembly of the
contact ring.
To tighten or
loosening the screws
of the CONNEX
separable connector.
827 017 002
305 675 003
559 214 003
563 376 002
Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01
