Pfisterer MV-CONNEX 3 - Single Earthing; Earthing Options

To Next Page

To Previous Page

www.psterer.com 43

Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01

Capacitive voltage tap optional

11 Single Earthing

Earthing principle depends on the network. The design of the

cable, earthing principle, position and the use of the screen

excess voltage limiter must be specied by the customer / pro-

ject management.

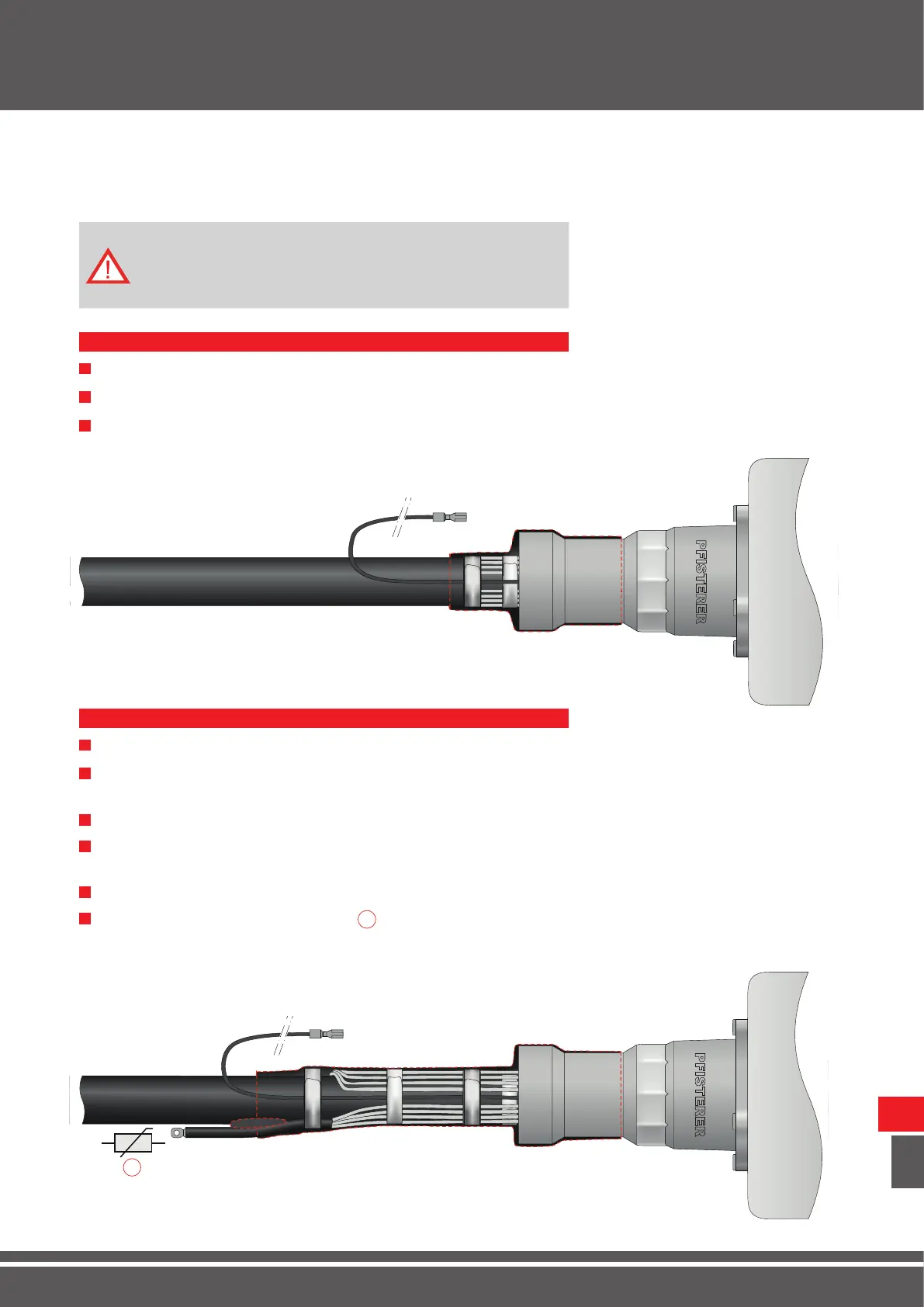

Option 1

Cut o screen wires at the height of the sealing tape.

1 1

Fix second layer of sealing tape directly on the rst, thus xing the wires.

2 1

Shrink heat-shrink tubing over bell ange and cable.

3 1

Option 2

Fix the screen wires after the sealing tape with duct tape.

1 1

Bundle the screen wires together, press on the cable lug and shrink over

the long heat-shrink tubing.

2 1

Place one layer of sealing tape above and below the heat-shrink tubing.

3 1

Position a tapping bracket on the large heat-shrink tubing between the

cable and the heat-shrink tubing covered screen wires.

4 1

Shrink heat-shrink tubing over bell ange and cable.

5 1

Connect screen excess voltage limiter.

6 1

Capacitive voltage tap optional

Single Earthing
