Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01

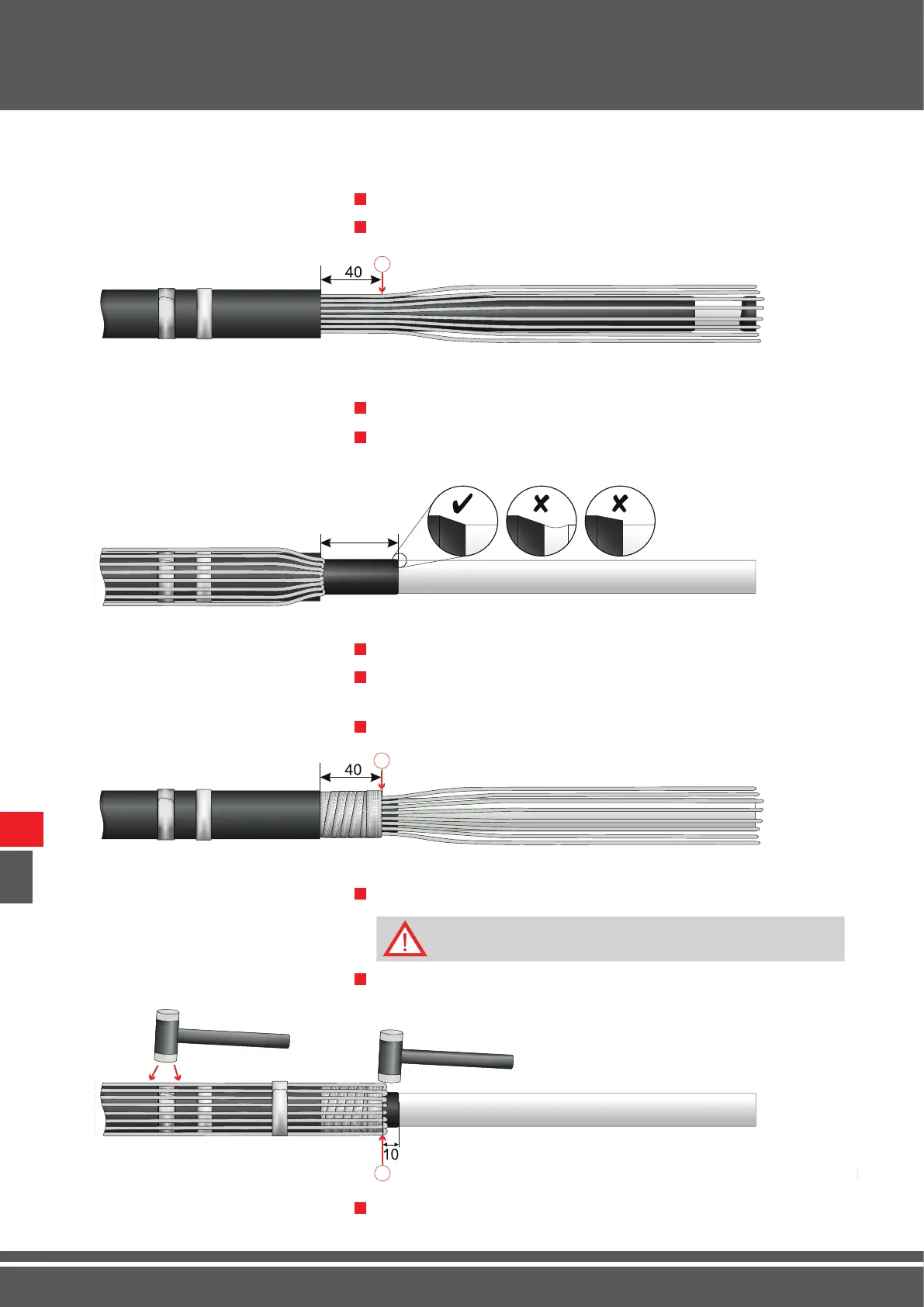

8.8 Thick conducting layer (Diameter > 2 mm)
Remove outer jacket to 40 mm behind the „jacket cut“ (1).
1 1
Remove swellable tape and bend screen wires back.
2 1
1
Bend back screen wires for peeling.
3 1
60
1
1
Installation / Assembly
VIII
Peel semiconductor layer using the peeling device to 60 mm in front of
the outer jacket (note instructions for the peeling device).
4 1
Re-apply the screen wires.
5 1
Apply woven insulating tape up to 40 mm in front of the "jacket cut" (1)
with a 50 % overlap.
6 1
At the "jacket cut" (1), apply 2–3 more layers.
7 1
Wrap around screen wires and secure with insulating tape.
8 1
Wrap screen wires in parallel, without crossing over!
Tap down screen wires at the "jacket cut" (1) and either side of the
sealing tape.
9 1
Go to Step 18 in Section 8.2, page 22.
10 1
