Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01

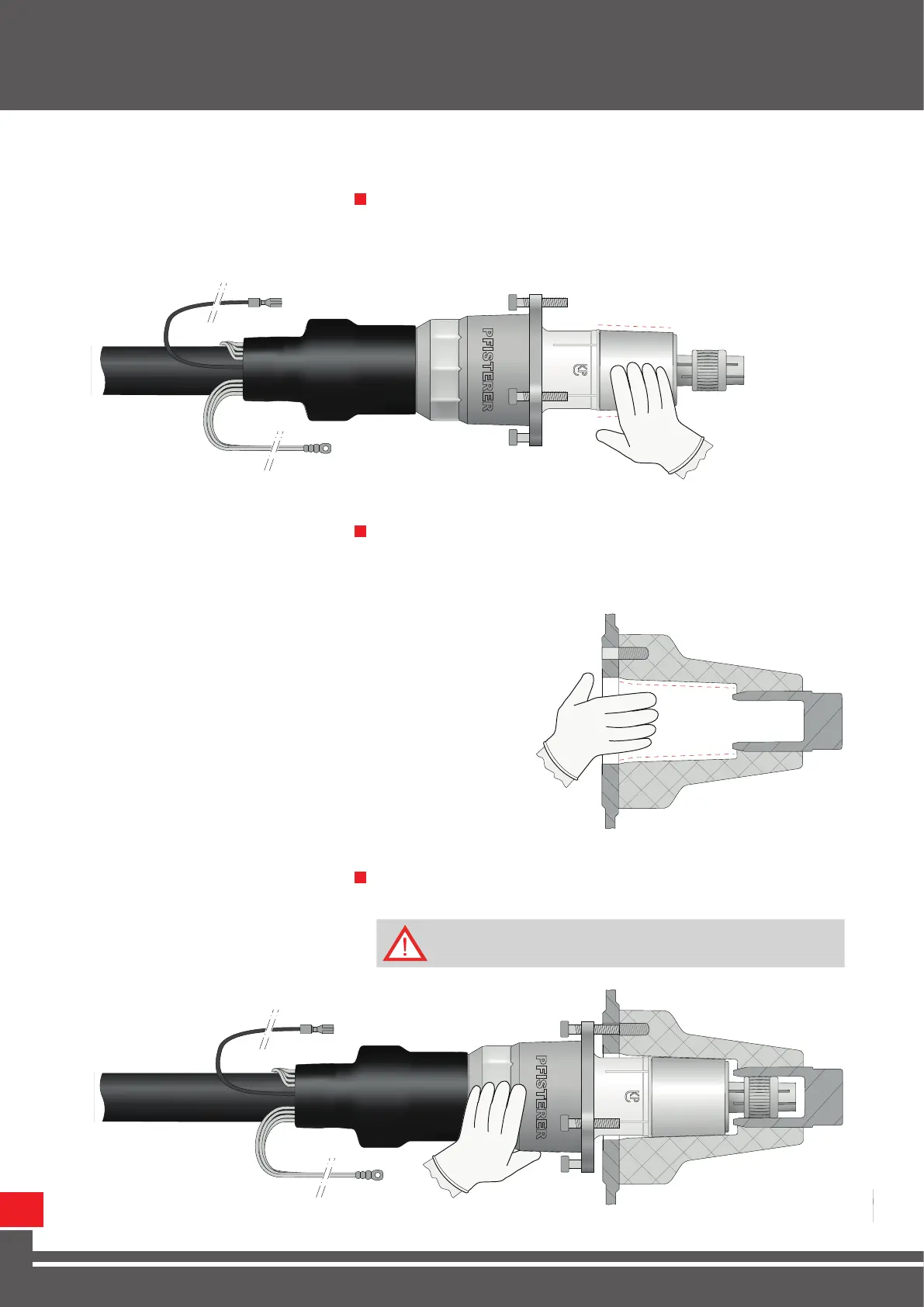

Clean the inside of the socket (recommended cleaning agents: benze-
ne, acetone) and grease thinly with PFISTERER MV-special grease. Wear
clean protective gloves (e.g. latex or plastic).
Do not apply grease to the contact area!
2 1
Introduce the CONNEX separable connector into socket and screw in
the screws.
3 1
The bell ange must be held with pressure on the insulating
part until the screws grip.
Unplugging/ Plugging In
XII
12.2 Plugging in
Clean the surface of the insulating part (recommended cleaning agents:
benzene, acetone) and grease thinly with PFISTERER MV-special grease.
Wear clean protective gloves (e.g. latex or plastic).
1 1
