9 Dismantling / Removal

Dismantling / Removal

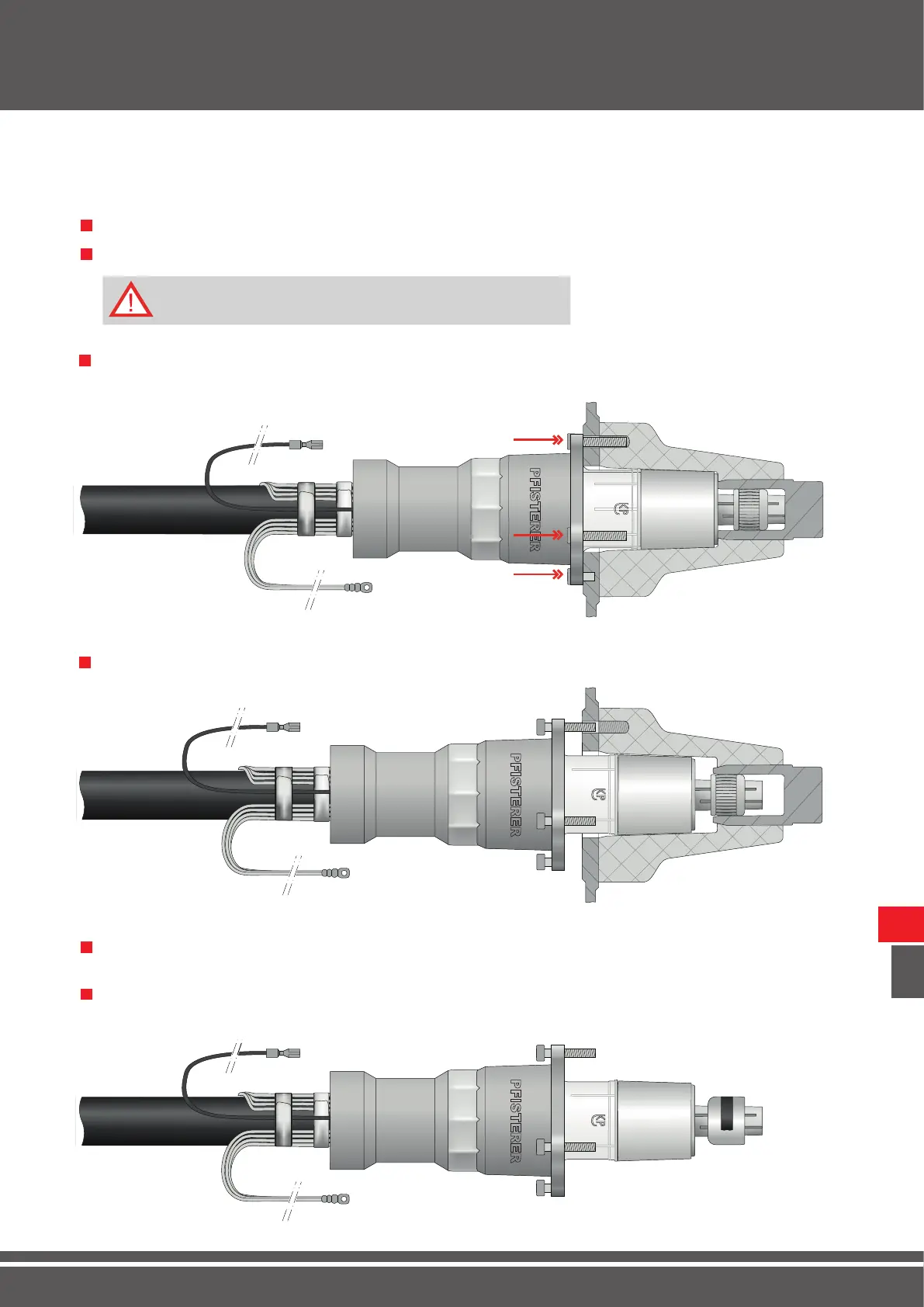

Loosen earthing.

1 1

Loosen the screws all round with the SW6 T-handle screwdriver.

2 1

3 1

Remove heat-shrink tubing.

The screen wires underneath the shrinkable tubing and the

test lead of the voltage tap must not be damaged.

Pull the CONNEX termination out of the socket.

4 1

Assemble the two halves of the removal tools and x it in place with

adhesive tape.

5 1

Place the removal tools over the contact ring with its rounding towards

the insulating part and squeeze together.

6 1
