Pfisterer MV-CONNEX 3 - Vertical Installation

34 www.psterer.com
Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01

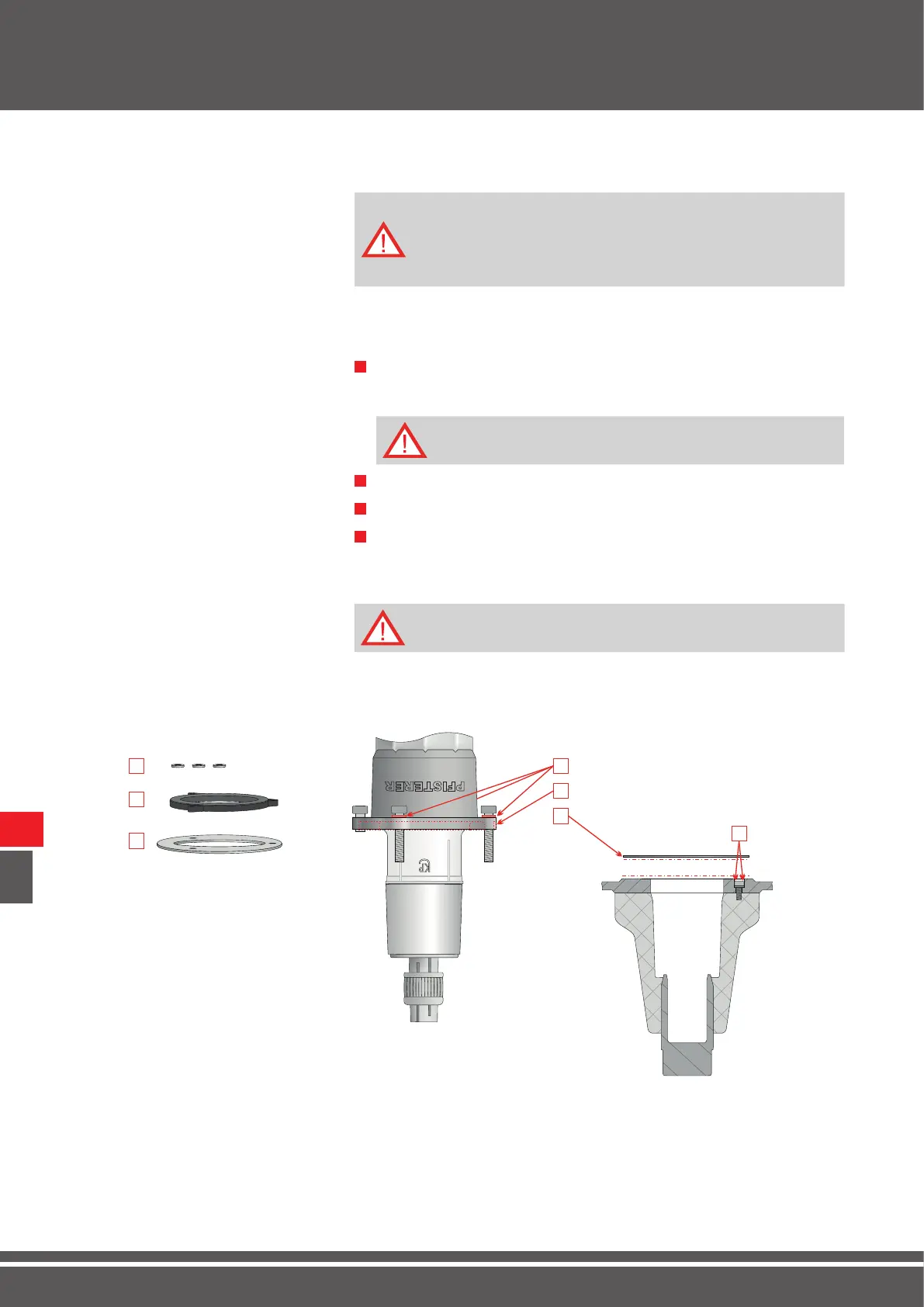

8.6 Vertically from above
Additional sealing is required when installing vertically from
the above.
Prepare socket and separable connector before the cable
connector is plugged in.
Place Usit-rings [A] under the three mounting screws.
1 1
Preparation of the cable connector:
Preparation of bushing socket:
The sealing set is only to be used in combination with the
screws, the Usit-rings, the washer and the Hylomar.
Completely ll the countersinks in the socket mounting with Hylomar [D].
2 1
Coat the sealing surface of the socket with Hylomar.
3 1
Coat the underside of the washer [C] with Hylomar and press it down
with this side towards the sealing surface of the socket.
4 1
Earthing the separable connector:
The sealing set is only to be used in combination with the screws,
the Usit-rings, the disc and the Hylomar.
A
B
C
D
A
B
C
Installation / Assembly
VIII
