Pfisterer MV-CONNEX 3 - Testing; Fittings and Blind Cap Mounting

40 www.psterer.com
Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01
If the CONNEX cable termination is pulled out for test purpo-
ses, the CONNEX cable termination must be closed with a volta-
ge-proof blind cap.

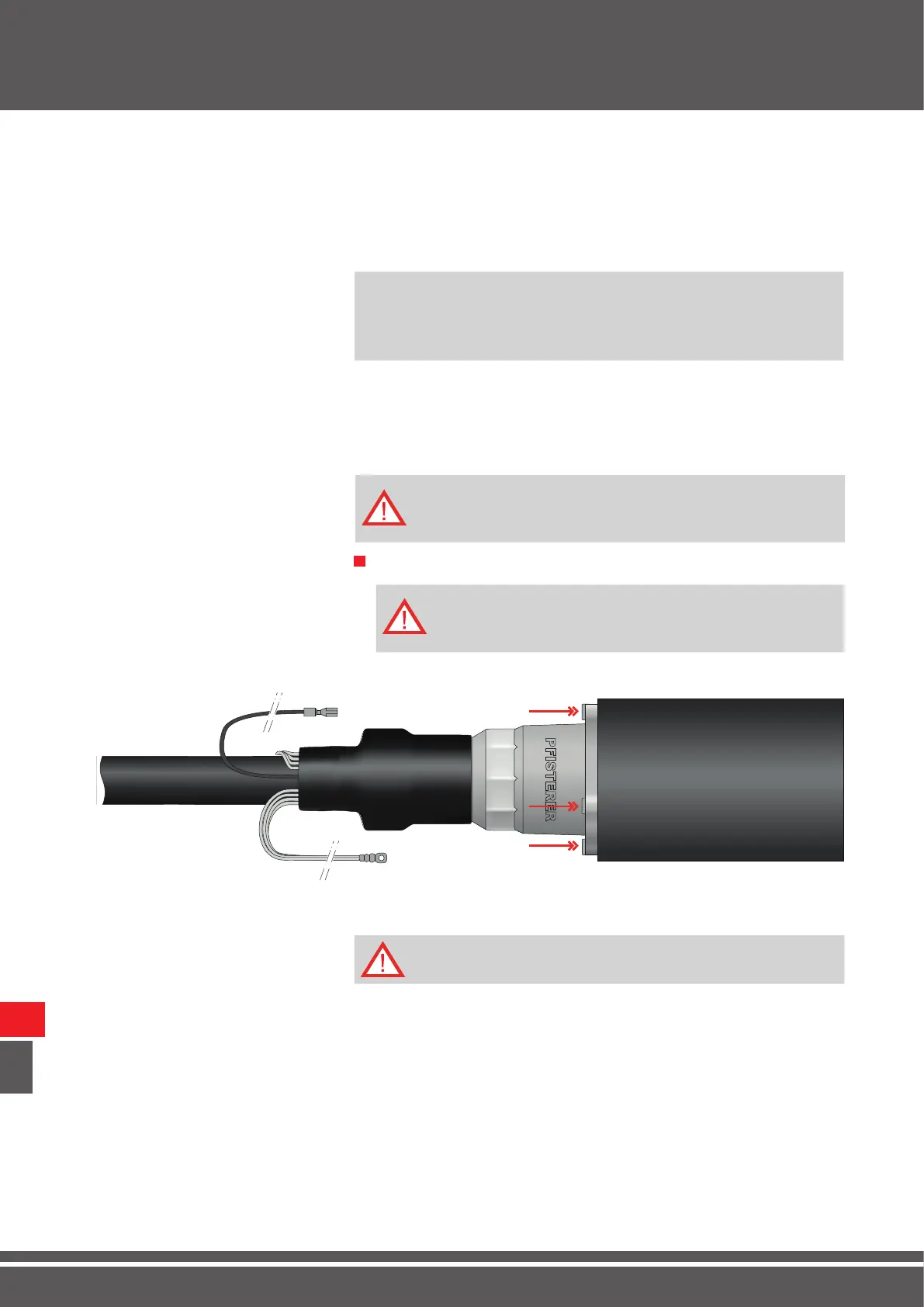

Position blind cap and tighten screws.
1 1
The socket and insulating part of the separable connector
must be cleaned and lubricated with special grease MV,
which can be ordered separately under 558 228 008.
X
Keep bell ange, cable screen and if appropriate test lead line separate.
10 Testing
10.1 Fittings required
10.2 Mounting blind cap
Testing
Blind cap
▪ Size 3, No. 827 131-003
Contact protection for CONNEX separable connectors under tension.
