The tension cone, insulating part and heat-shrink tubing should
not be reused!

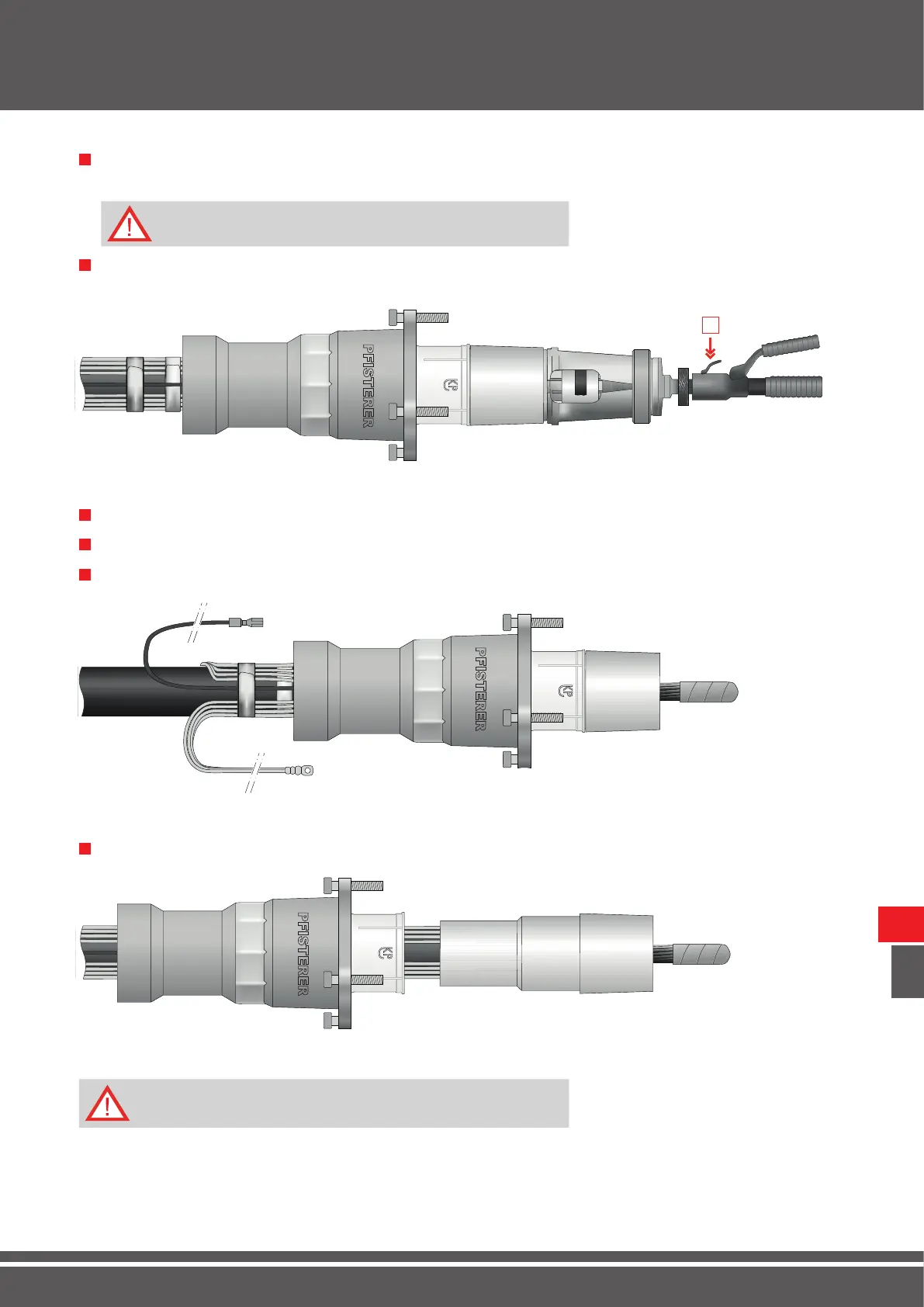

Dismantling / Removal
IX
Pull the contact ring off the tension cone with the hydraulic compres-
sion tool.
11 1
Slide the retaining ring of the compression head back and open the
half-shells.
12 1
Release the hydraulic compression tool [2].
Remove the hydraulic compression tool.
13 1
Remove the tension cone and thrust piece.
14 1
Cover conductor end with protective wrapping.
15 1
Remove the insulating part and bell ange.
