Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01

8.4 Assembly

110

ca. 10

Installation / Assembly

VIII

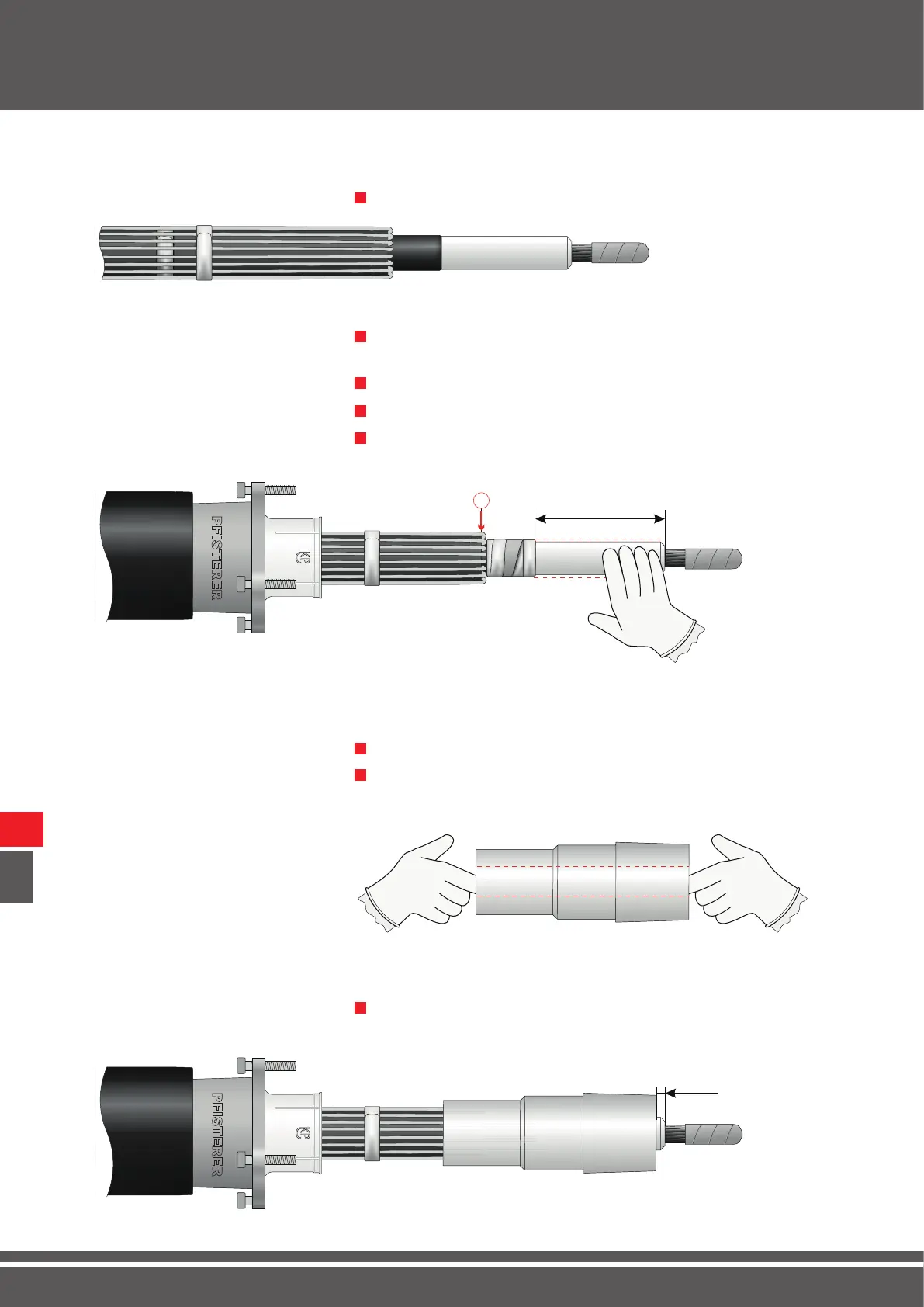

Apply a protective tape to the end of the conductor using insulting tape.

1 1

Apply self-adhesive tape, with the sticky side facing outwards, to form a

protective wrapping over the conductive layer.

2 1

Slide the heat-shrink tubing and bell ange over the cable.

3 1

Clean the insulation. (Recommended cleaning agents: benzine, acetone.)

4 1

Grease the insulation thinly and evenly with PFISTERER MV-special grease.

5 1

Remove the protective wrapping from the conductive layer.

6 1

Check the insulating part for cleanliness and completely grease

the inside thinly and evenly with PFISTERER MV-special grease.

7 1

Slide the insulating part onto the insulation, until 10 mm of the insula-

tion is exposed. Remove excess grease.

8 1
