Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01

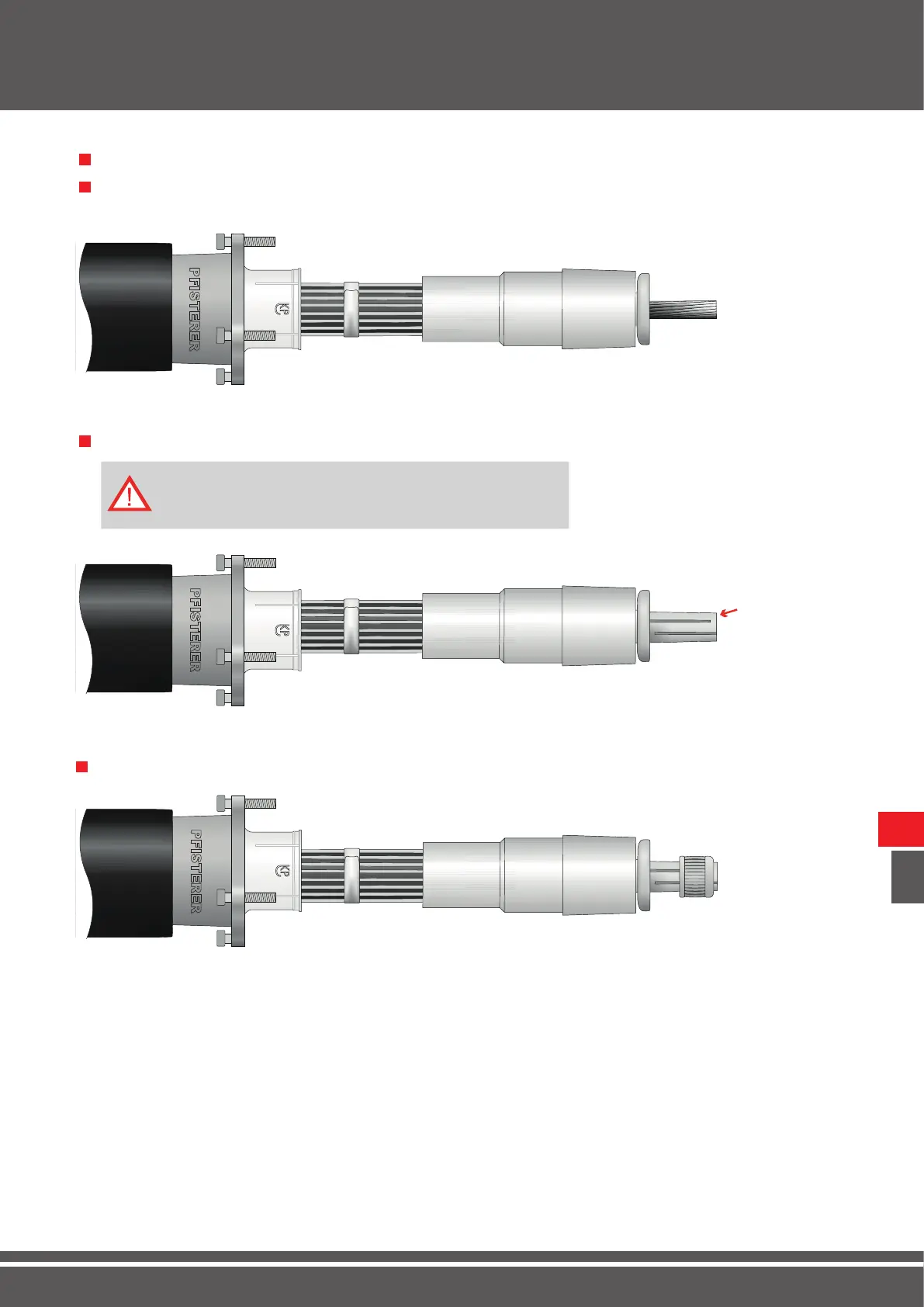

Remove the protective wrapping from the conductor.
9 1
Slide the thrust piece onto the conductor with the rounded side to-
wards the insulating part.
10 1
Slide the tension cone onto the conductor up to the thrust piece.
11 1
The conductor must not protrude past the tension cone!
No grease may come into contact with the tension cone!
Conductor and tension cone must be free of grease!
Slide the contact ring onto the tension cone.
12 1
VIII
Installation / Assembly
