Phanteks Eclipse P600s User Manual

30
The Revolt X includes 2 dierent 24-pin Motherboard
cable lengths; 610mm and 710mm.
Use the longer, 710mm, 24-pin cable for the System 2
ITX motherboard.
SYSTEM 1
24-pin Motherboard
610 mm
710 mm
SYSTEM 2
24-pin Motherboard
INSTALLING A DUAL SYSTEM

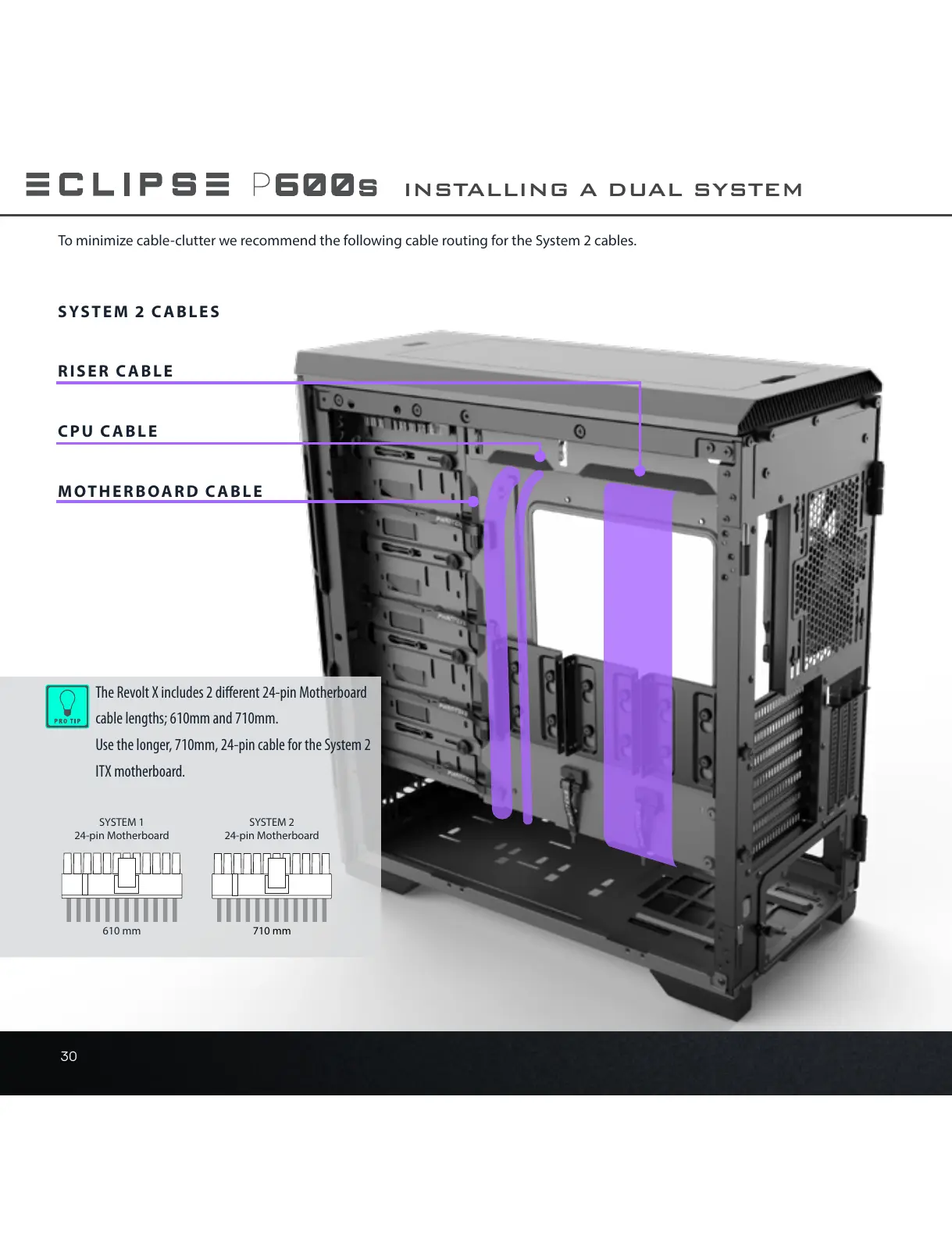

To minimize cable-clutter we recommend the following cable routing for the System 2 cables.
SYSTEM 2 CABLES
RISER CABLE
CPU CABLE
MOTHERBOARD CABLE
All manuals and user guides at all-guides.com

Phanteks Eclipse P600s Specifications

General

Form Factor	Mid Tower
Dimensions	240 mm x 520 mm x 510 mm (W x H x D)
Material	Steel, Tempered Glass, Plastic
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Rear: Up to 140mm
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Dust Filters	Front, Top, Bottom
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Expansion Slots	7
Front I/O Ports	1x USB 3.1 Gen 2 Type C, 2x USB 3.0, Audio In/Out, Power Button, Reset Button
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Pre-installed Fans	Front: 2x 140mm, Rear: 1x 140mm
Weight	13.5 kg
